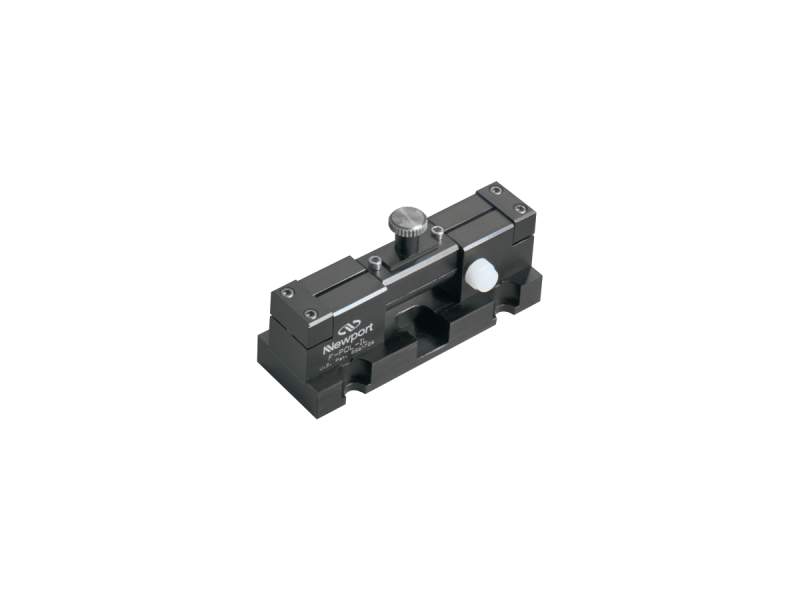

Polarization Controller, In-Line, 250 µm Buffer Fiber

Newport's Polarization Controllers are designed for those working with polarization sensitive devices and systems. The patented design, based on an all-fiber Babinet-Soleil compensator, can be used to generate any polarization state at the output from an arbitrary input polarization state.
The rotatable fiber squeezer mechanism adds no intrinsic loss or back-reflection, and allows polarization adjustments in two quick and easy steps. In addition to their compact size, the controllers are insensitive to variations in fiber material, diameter or wavelength of the light passing through the fiber. The F-POL-IL In-Line version offers great flexibility by allowing the insertion of a 250 μm buffered optical fiber.

Babinet-Soleil Compensator for Polarization Control

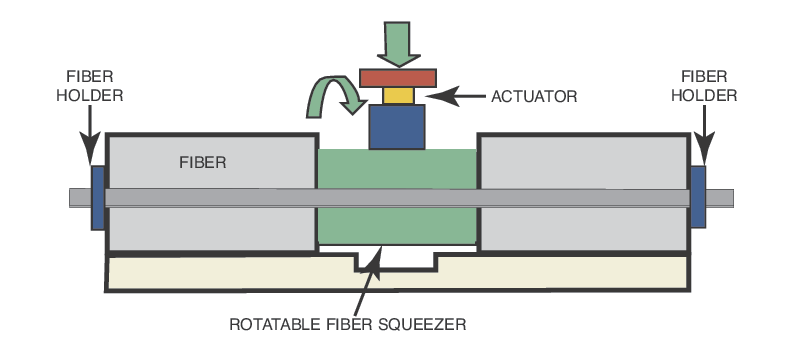

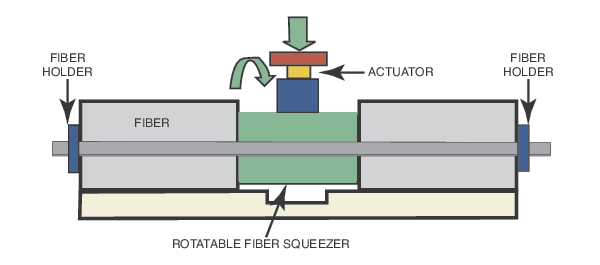

Schematics of a polarization controller using Babinet-Soleil compensator principle

Manual polarization controllers are based on an all-fiber Babinet-Soleil Compensator. The patented design can be used to generate any polarization state at the output from an arbitrary input polarization state.

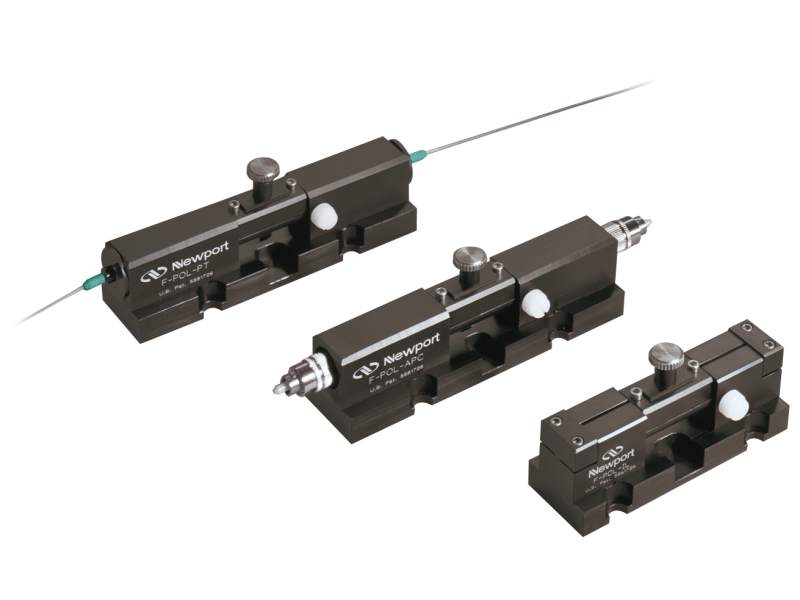

Three Design Styles Available

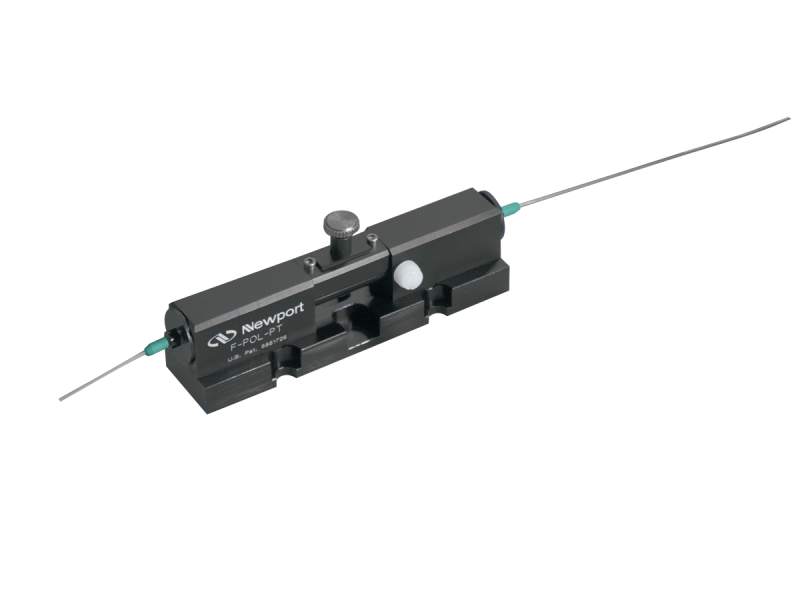

The In-Line version, F-POL-IL, offers great flexibility by allowing the insertion of a 250 µm buffered optical fiber. The Pigtailed version, F-POL-PT, includes two 9/125 µm fiber pigtails, with 900 µm jackets, with no connectors, FC/UPC, or FC/APC connectors. The bulkhead versions, F-POL-PC and F-POL-APC, are available with either FC/PC or FC/APC connectors.

Rotatable Fiber Squeezer Mechanism

The device comprises a rotatable fiber squeezer mechanism that rotates around the optical fiber while adding no intrinsic loss or back-reflection, and allows polarization adjustments in two quick and easy steps. Applying a pressure to the fiber produces a linear birefringence, effectively creating a fiber wave plate whose retardation varies with the pressure. Simple squeeze-and-turn operations can generate any desired polarization state from any arbitrary input polarization.

Compact and Insensitive to Photonic Effects

In addition to their compact size, the controllers are insensitive to variations in fiber material, diameter or wavelength of the light passing through the fiber.

Specifications

Technical Specs

Type
Polarization Controller
Extinction Ratio
40 dB
Typical Insertion Loss
<0.05 dB
Return Loss
>65 dB

Operating Temperature
-40 to 85°C

Type
Polarization Controller
Extinction Ratio
40 dB
Typical Insertion Loss
<0.05 dB
Return Loss
>65 dB

Operating Temperature
-40 to 85°C

Resources & Downloads

Related Products

Accessories

Description	Compatibility	Avail.	Price
F-IRC4-SIR Sensor Card, 700-1600 nm, 1 in. x 1.5 in. Sensor	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$125
F-MA-FC-FCFiber Optic Mating Adapter, FC Female to FC Female	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$11

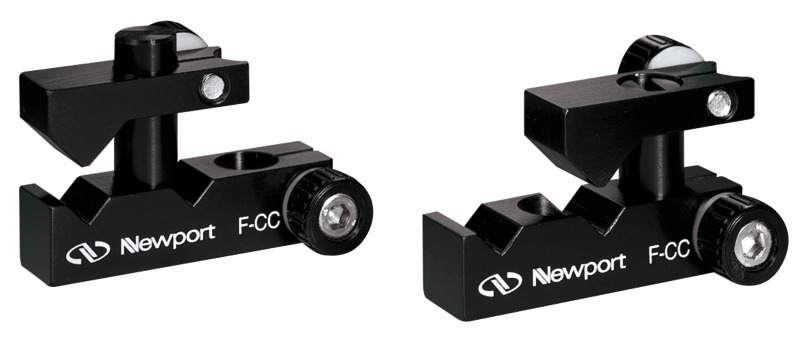

F-CCUniversal Cable Clamp, Two V-grooves	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$175

Similar

Description	Compatibility	Avail.	Price
F-POL-PTPolarization Controller, Fiber Pigtail, No Connectors.	UNIVERSAL		$567

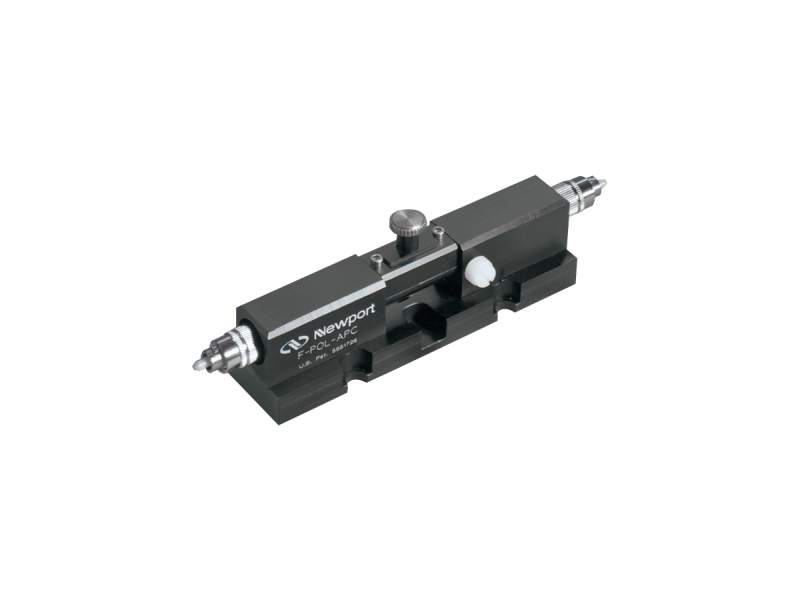

F-POL-APCFiber Polarization Controller, Male FC/APC Bulkhead Connectors.	UNIVERSAL		$926
F-POL-PT-FCAPCPolarization Controller, Fiber Pigtail, FC/APC Connectors.	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$790

Compatible

Description	Compatibility	Avail.	Price
F-PM1550-C-1FCAPCPM Fiber Patch Cable, Panda, F-PM1550, 1550 nm, 1 m, FC/APC	UNIVERSAL		$265
F-PM1550Polarization Maintaining Optical Fiber, Panda, 1550 nm, 0.10-0.13 NA	UNIVERSAL		$18.20

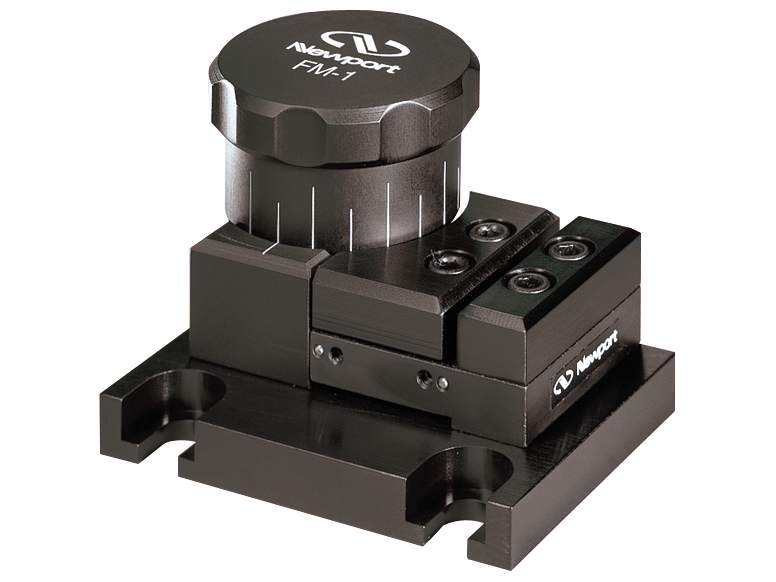

FM-1Fiber Mode Scrambler, Knob Control, Graduated Scale	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,140
