Fiber Optic Coupler, Multimode, 1 x 4, 850 nm, FC/PC
Fiber Optic Coupler, Multimode, 1 x 4, 850 nm, FC/PC
Model: F-CPL-M14850-FCPC
Product Series Overview

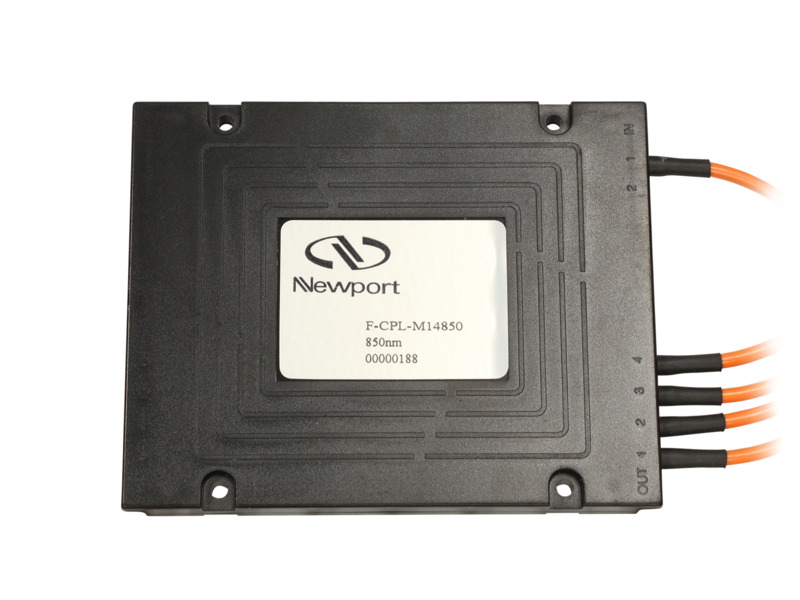

Multimode Fiber Optic CouplersThe F-CPL-M14850-FCPC Multimode Fiber Optic Coupler allows bi-directional coupling and can be used to either split or combine signals. It uses 62.5/125 μm fiber, with low insertion loss and a 850 nm operating wavelength. This 1x4 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails with FC/PC connectors.
Low Insertion Loss over Large Wavelength Range with Many Options Available
Our Multimode Fiber Optic Couplers come standard with 62.5/125 µm fiber, with low insertion loss and a broad operating wavelength range from 800 to 1600 nm. The 1x2 and 2x2 couplers are offered in both 50/50 (3 dB) and 10/90 coupling ratios. 1x4 and 1x8 port configurations are also available.
Rugged Housing and Cabling with Pigtail or FC/UPC Connection Available
All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated or with FC/UPC connectors.
Advanced Manufacturing Methods
Newport employs advanced manufacturing methods and extensive environmental testing to ensure that these products are suitable for applications in telecommunications, CATV, aerospace, defense, and R&D.
Resources & Downloads

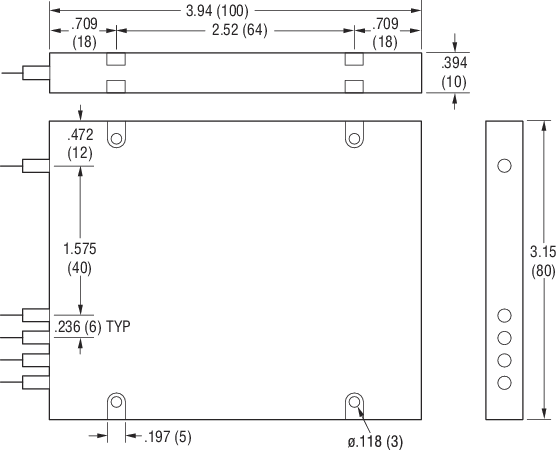

2D Product Drawings
Fiber pkg -C-S(77.2 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-MA-ST-FCFiber Optic Mating Adapter, ST Female to FC Female | In Stock | ||||
 | F-MA-SC-FCFiber Optic Mating Adapter, SC Female to FC Female. | In Stock | ||||
 | F-MA-FC-FCFiber Optic Mating Adapter, FC Female to FC Female | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-CPL-M18850Fiber Optic Coupler, Multimode, 1 x 8, 850 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

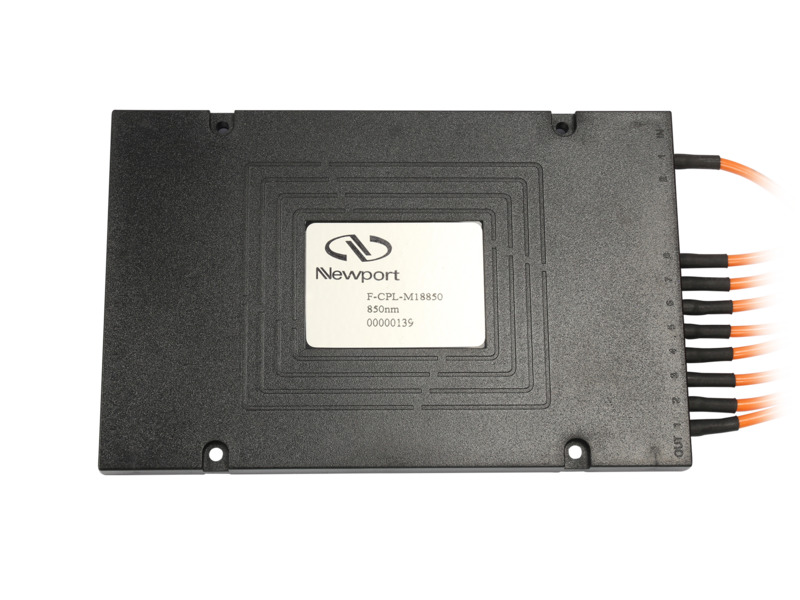

| F-CPL-M18850-FCPCFiber Optic Coupler, Multimode, 1 x 8, 850 nm, FC/PC | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
