Optical Fiber Coupler, Broadband, 1 x 8, 1310/1550 nm, ±40 nm

1x4, 1x8 and 1x16 Singlemode Fiber Couplers

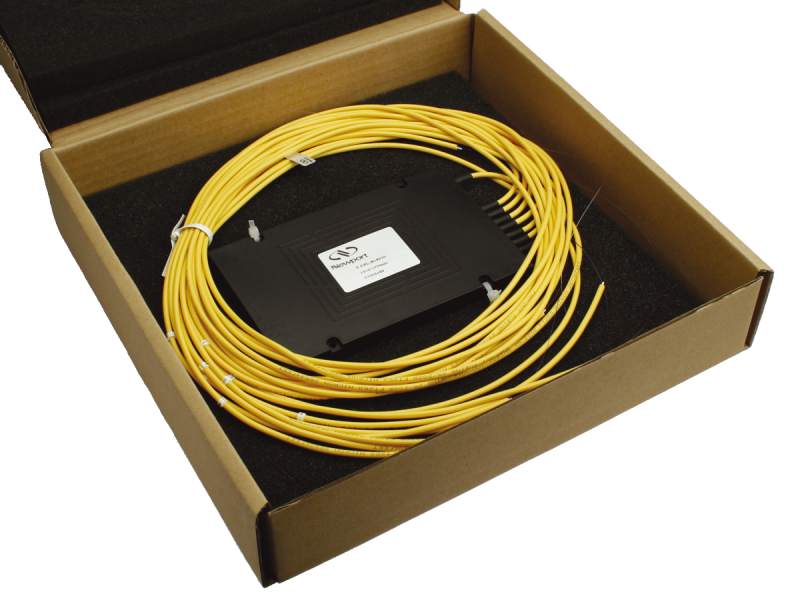

The F-CPL-B18350 Single Mode Broadband Coupler allows bi-directional coupling and can be used to either split or combine signals with an even ratio. It uses an SMF-28e+ fiber, with low insertion loss and operational over both the 1310 and 1550 nm windows with ±40 nm Bandwidth. This 1x8 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails, unterminated.

Rugged Housing and Cabling with Pigtail, FC/UPC or FC/APC Connections Available

All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated, FC/UPC, or FC/APC.

Broadband Fiber Optic Couplers

Our Broadband couplers optimized to work over both the 1310 and 1550 nm windows. This allows users the versatility to use a single device at both wavelengths. These devices come in 1x4 and 1x8 configurations.

Specifications

Technical Specs

Type
1x8 Broadband Coupler
Fiber Type
Singlemode
Fiber Connector
Bare Fiber
Operating Wavelength
1310/1550 nm
Maximum Insertion Loss
11 dB
Bandwidth
±40 nm
Maximum Optical Power
2 W

Option Code
67
Package Type
D
Operating Humidity
90–95%
Uniformity
2.1 dB

Type
1x8 Broadband Coupler
Fiber Type
Singlemode
Fiber Connector
Bare Fiber
Operating Wavelength
1310/1550 nm
Maximum Insertion Loss
11 dB
Bandwidth
±40 nm
Maximum Optical Power
2 W

Option Code
67
Package Type
D
Operating Humidity
90–95%
Uniformity
2.1 dB

Resources & Downloads

2D Product Drawings

Fiber pkg -D-S(78.9 kB, PDF)
