DYNAMYX-GT Air Bearing Stage

Air Bearing Stage, High-Throughput, DynamYX^® GT

Model: DYNAMYX-GT

Compare

Add to List

Product Series Overview

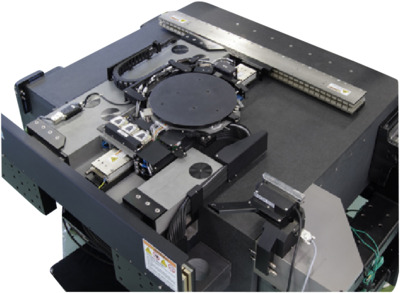

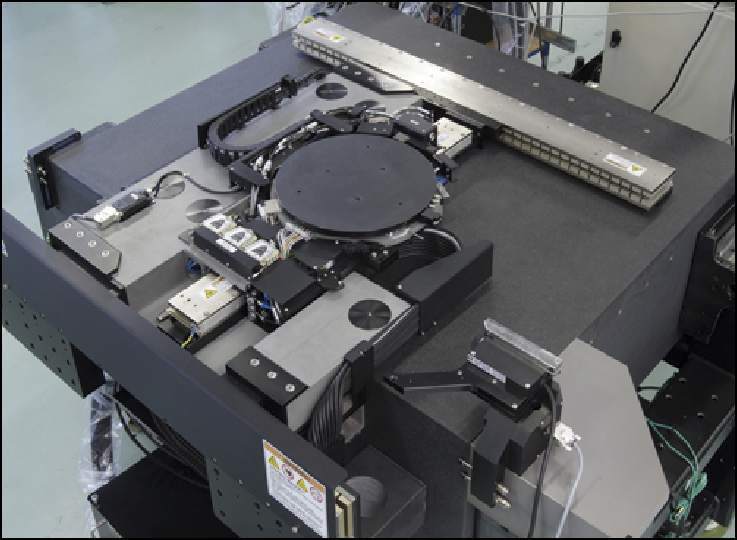

DynamYX^® GT High-Throughput Stage

The DynamYX^® GT air-bearing stage is intended for high-throughput applications with aggressive duty-cycles. Featuring an extremely rigid structure and high load capacity air bearings, it provides up to 2G acceleration. The DynamYX GT also has high-efficiency X and Y linear motors with integrated cooling drive moving masses through the respective CG's. It is also available with Newport’s patented ZT3, Z-Tip-Tilt-Theta stage

Specifications

Technical Specs

Bearings

Vacuum/pressure air bearing
Drive Type

Ironless linear motor
Maximum Speed

400 mm/s

Weight

550 kg

Bearings

Vacuum/pressure air bearing
Drive Type

Ironless linear motor
Maximum Speed

400 mm/s

Weight

550 kg

Resources & Downloads

Literature

Air Bearing Positioning System Brochure (4.3 MB, PDF)
