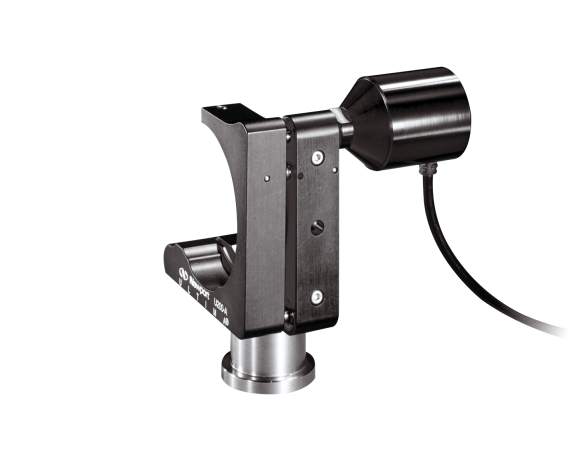

Motorized Actuator, NSA12, CONEX-PP Integrated Controller

Technical Specs

  • Travel Range
    11 mm
  • Drive Type
    Micro Step Drive Stepper
  • Stage Type
    NSA12 Linear Actuator
  • Axial Load Capacity
    0 N
  • Axial Load Capacity, Inverse
    -28 N
  • Maximum Speed
    0.9 mm/s
  • Minimum Incremental Motion
    0.20 µm
  • Bi-directional Repeatability, Typical
    ±5.0 µm
  • Limit Switches
    Optical Home switch on the motor side, use software limit for maximum travel limitation
  • Origin
    Optical, at lower limit
  • Origin Repeatability
    ±2 µm
  • Feedback
    Open loop, no encoder
  • Cable Length
    3 m
  • Drive Mechanism
    Direct drive, non-rotating lead screw
  • Power Requirements
    24 VDC, 8 W
  • Computer Interfaces
    USB
  • Controller Dimensions
    93.2 x 53 x 23 mm
  • Weight
    0.1 kg
  • MTBF
    10,000 h (25% load, 10% duty cycle)
  • RoHS
    Compliant
