Right-Angle Prism, N-BK7, 3.2 mm, λ/8, Aluminum Hypotenuse
Right-Angle Prism, N-BK7, 3.2 mm, λ/8, Aluminum Hypotenuse
Model: BRAP10-A
Product Series Overview

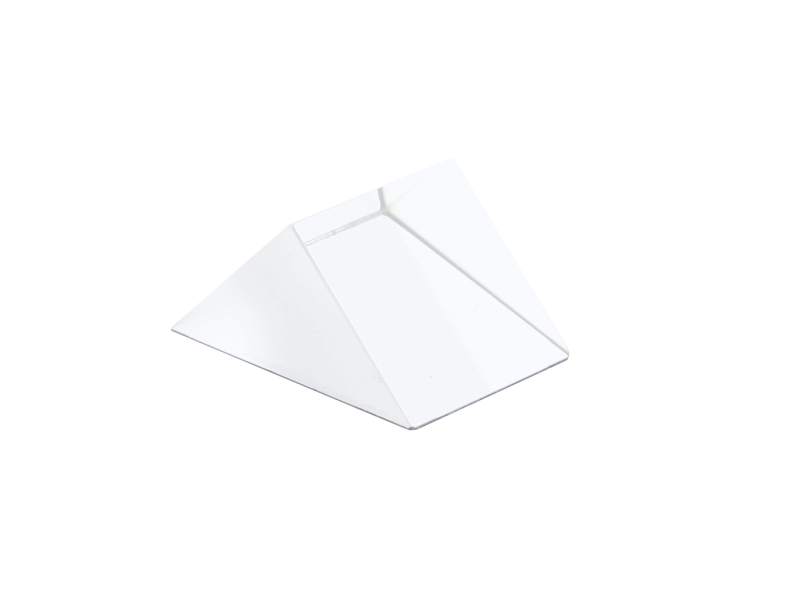

Standard N-BK7 Right-Angle PrismsThe BRAP10-A High Tolerance Right-Angle Prism is precision polished to tight tolerances for more demanding applications. This protective aluminum coated hypotenuse, N-BK7 prism dimension is 0.13 x 0.13 x 0.13 inch (3.2 x 3.2 x 3.2 mm). It has a λ/8 surface flatness and a 40-20 surface quality. This prism is recommended for general laboratory use in the visible range. By means of total internal reflection (TIR), a right-angle prism may be used as a 90° reflector or as a 180° retroreflector. Except for reflection losses from the entry and exit faces, TIR exhibits 100% reflectivity over a very large wavelength range.
Resources & Downloads
Other
BRAP10-A RoHS Certificate(708.1 kB, PDF)
2D Product Drawings
PRISM-DWG.pdf(89.5 kB, PDF)
