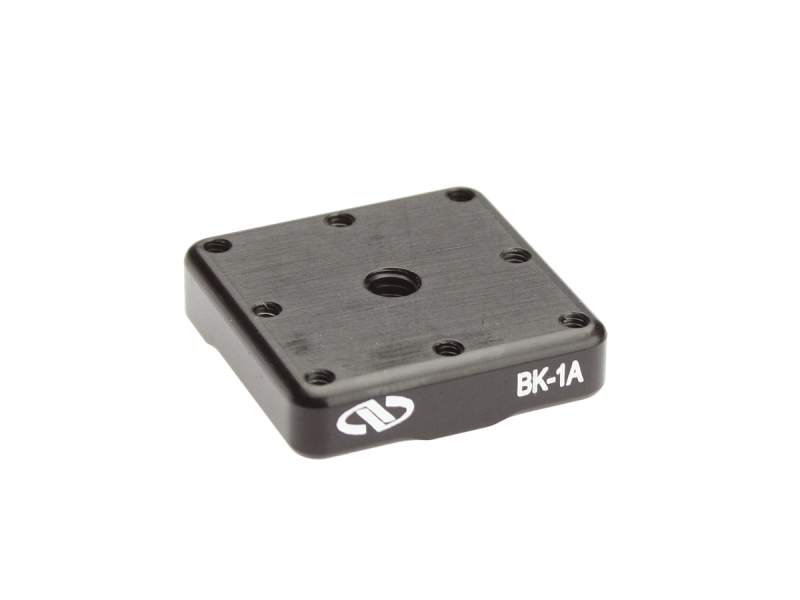

Top Plate, For BK-1A Kinematic Base

Top Plate, For BK-1A Kinematic Base

Model: BK-1A-T

$55

In Stock

Compare

Add to List

Product Series Overview

Kinematic Bases

The BK-1A-T Top Plate is a spare top plate for BK-1A Kinematic Bases.

Specifications

Technical Specs

Type

Kinematic Base Top Plate
Base size

25 x 25 mm
Thread Type

2-56 and 8-32

Material

Aluminum

Type

Kinematic Base Top Plate
Base size

25 x 25 mm
Thread Type

2-56 and 8-32

Material

Aluminum

Resources & Downloads

Other

BK-1A-T RoHS Certificate (277.4 kB, PDF)
BK-1A-T_RoHS2021.pdf (679.3 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-1-S (150.2 kB, PDF)
