Base Clamp, Adjustable-Height, Short, 1/4-20 Tapped Holes

Model: BC-5

$13.10

In Stock

Compare

Add to List

Product Series Overview

Adjustable Height Base Clamps

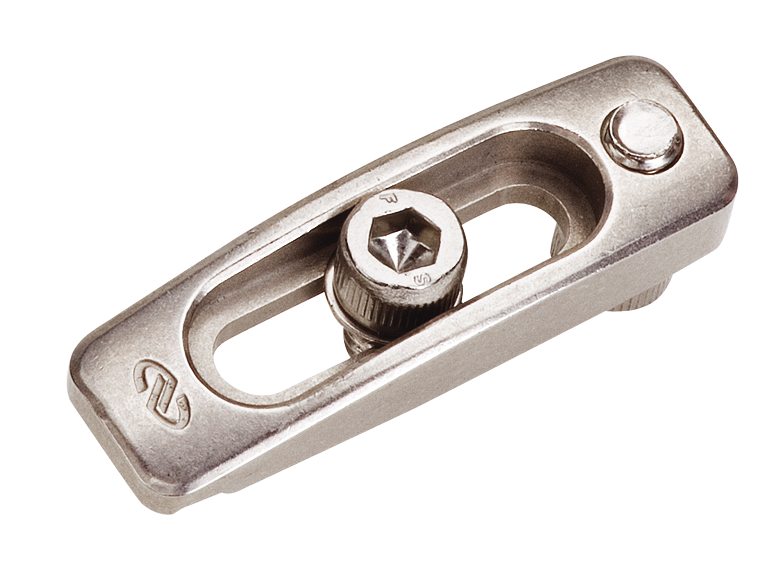

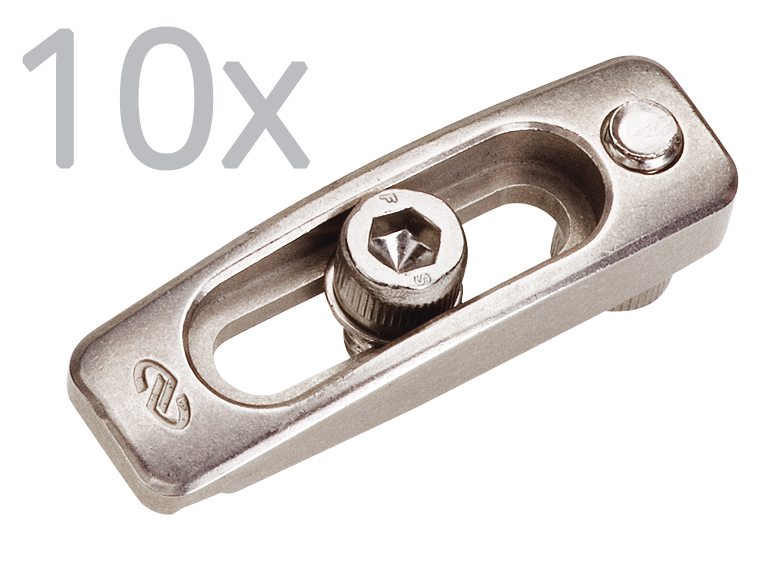

The BC-5 Short Adjustable-Height Stainless Steel Base Clamp has 1/4-20 tapped holes and a notched tip to provide superior clamping security. This product is also available in 10-piece saving pack BC-5-PK.

Specifications

Technical Specs

Type

Short Base Clamp
Thread Type

1/4-20

Material

Stainless Steel

Type

Short Base Clamp
Thread Type

1/4-20

Material

Stainless Steel

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BC-5-250 (144.9 kB, PDF)

Other

BC-5 RoHS Certificate (279.5 kB, PDF)
BC-5_RoHS2021.pdf (687.9 kB, PDF)
