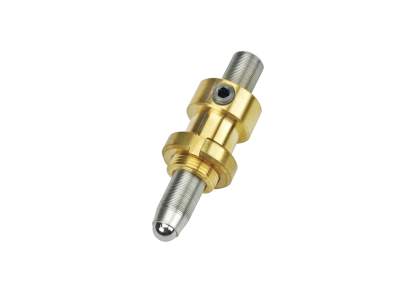

Adjustment Screw, Hex, Braked, 19.1 mm Travel, Ball Tip, 1/4-80
The 0.75 inch (19.05 mm) 9304-K Adjustment Screw provides smooth, wobble-free adjustment combined with exceptional long-term stability and low susceptibility to thermal variation. It is the same 1/4-80 precision screw used in our optic mounts and allows you to build your own mounts or positioners. In addition to a travel of 0.75 inch (19.05 mm); the screw has a ball tip, braked brass bushing, and is Hex-key adjusted.
Resources & Downloads
2D Product Drawings
99-930x(95.1 kB, PDF)
Other
MKS EU ROHS3 - 930x Series Adjustment Screws(733.2 kB, PDF) REACH Supplier Statement - 930x Adjustment Screws(561 kB, PDF)
