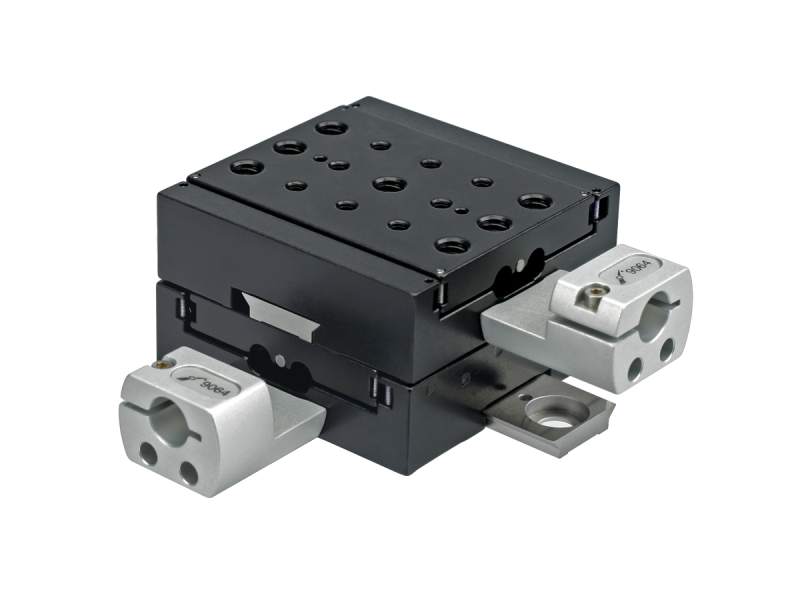

Triple Divide XY Axis Translation Stage, 28 mm Travel, M4 and M6
The 9064-XY-M Triple Divide XY Axis Translation Stage puts two single-axis 28 mm travel stages together using our e⋅z⋅Trac™ to give you one of the lowest-profile XY stages available. Its 1.5 inch height creates a stable platform and the e⋅z⋅Trac allows you to coarsely position in both X and Y before finely positioning the stage using the actuators. Switching between left- and right-handed versions is as easy as turning a single locking screw. M4 and M6 threaded mounting holes. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.
Specifications
- Axes of TravelX, Y
- Maximum Stage Travel28 mm
- Recommended ActuatorsSM-25 mic, 9302 screw, 8302 pico
- Straight Line Accuracy<2.5 µm
- MaterialAluminum
- BearingsSingle-Row Ball Bearings
- Thread TypeM4 and M6
Resources & Downloads
2D Product Drawings
9064xyrb-Drawing(128.5 kB, PDF)
