XYZ Linear Stage, Gothic-Arch, 40x40 mm, YZ Micro, X Pico, 8-32, 1/4-20

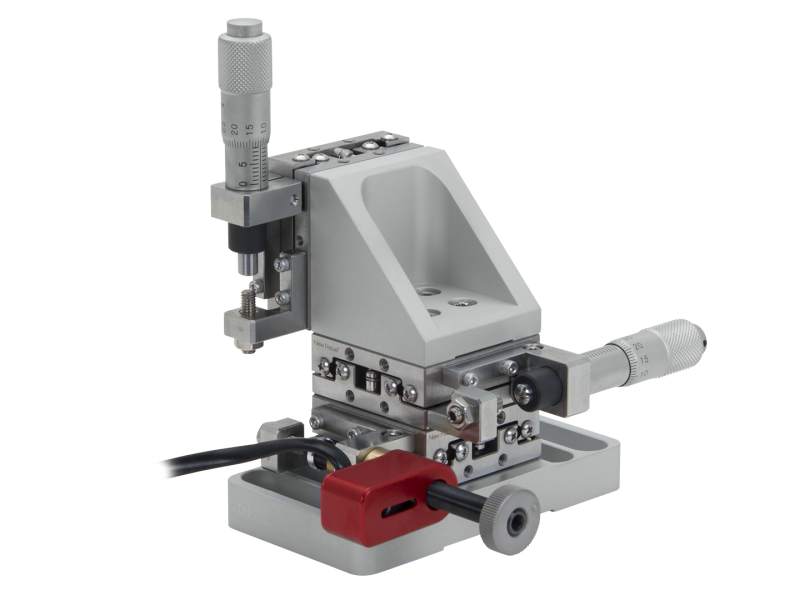

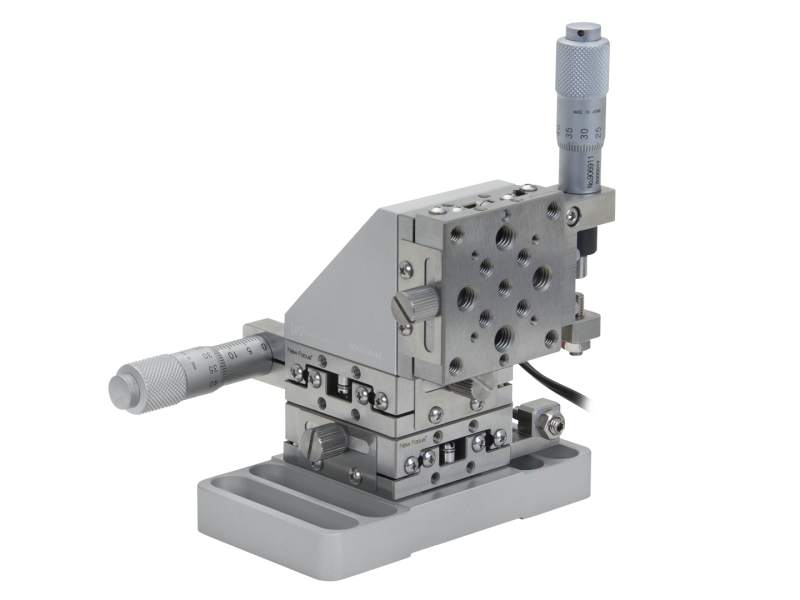

The 9062-XYZ-PNN Motorized Gothic-Arch Bearing Stage incorporates our Picomotor™ actuators with our 40 x 40 mm platform gothic-arch-bearing translation stages to achieve the ultimate in stability and rigidity along with remote-control operation. A Picomotor actuator controls the X axis, while the Y and Z axes are micrometer controlled. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. These stages offer stainless-steel construction, thumbscrew locks, and 0.5 inch (12.7 mm) travel range. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. 8-32 and 1/4-20 threads
Specifications
- Travel Range12.7 mm
- Axes of TravelXYZ
- Motorized AxesX
- Micrometer AxesY, Z
- Included ActuatorsPicomotor:
Micrometer: - Maximum Speed0.02 mm/s
- Minimum Incremental Motion<30 nm (Picomotor)
- Resolution0.5 µm (Micrometer)
- Centered Load Capacity84 N
- Vertical Load Capacity29.4 N
- BearingsGothic Arch Bearings
- MaterialStainless Steel
- FeedbackOpen Loop
- Cable Length2.1 m
- Connector Type4-Pin
- Thread Type8-32 and 1/4-20
- Platform Size40 x 40 mm
- Operating Temperature10 to 40°C
Resources & Downloads
3D Product Models
2D Product Drawings
ENGINEER - 9062_XYZ(262.9 kB, PDF)
Technical Notes
Open vs Closed Loop Picomotors(1.6 MB, PDF)
Literature
Picomotor FAQ(3.1 MB, PDF)
