Fixed Slit, 5000 µm Width, 20 mm Height

Model: 77735

$195

5 Weeks

Compare

Add to List

Product Series Overview

Slits for Monochromators and Spectrographs

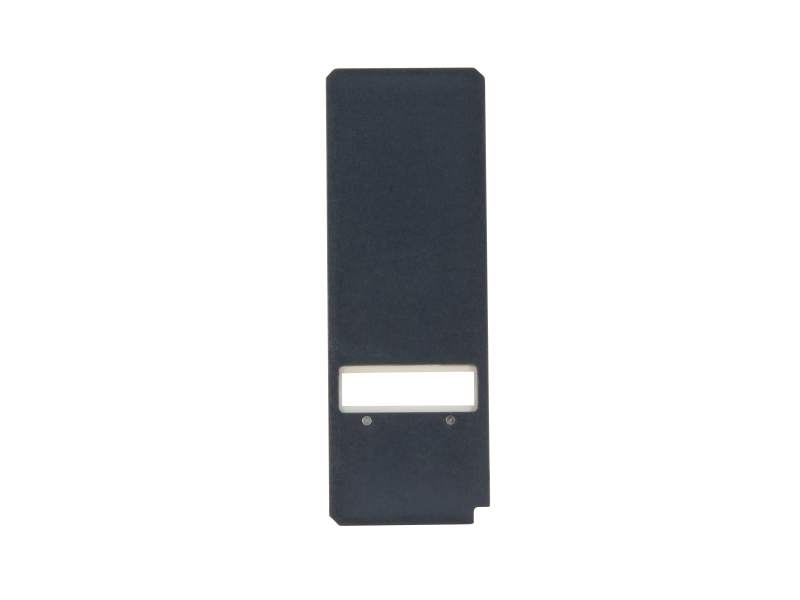

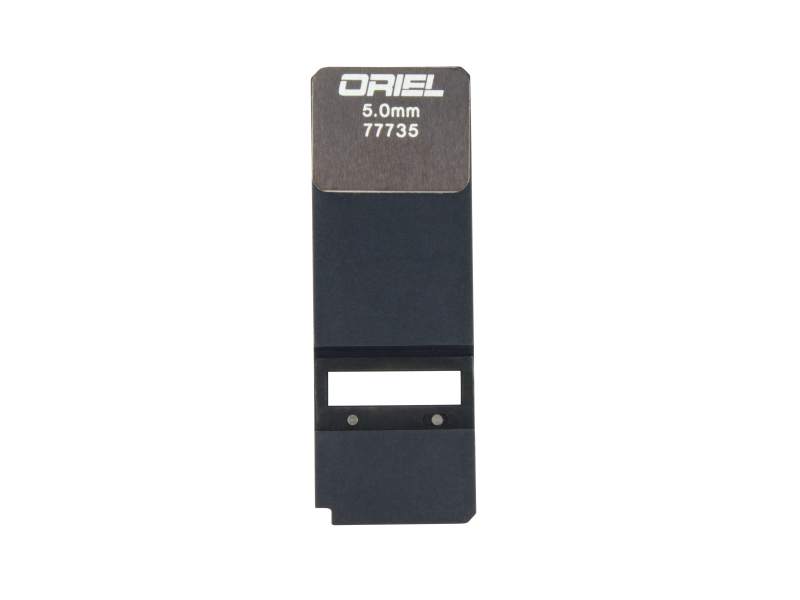

The 77735 Fixed Slit is the most economical choice if you only need a few slit sizes. This 5000 μm width by 20 mm precision slit is fixed on a machined slide. You will need the 77294 Fixed Slit Holder to hold the slit and mate it to the monochromator.

Specifications

Technical Specs

Type

Fixed Slit
Slit Height

20 mm

Slit Width

5000 µm

Type

Fixed Slit
Slit Height

20 mm

Slit Width

5000 µm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPT-pg9-38b-L Drawing (84.7 kB, PDF)
