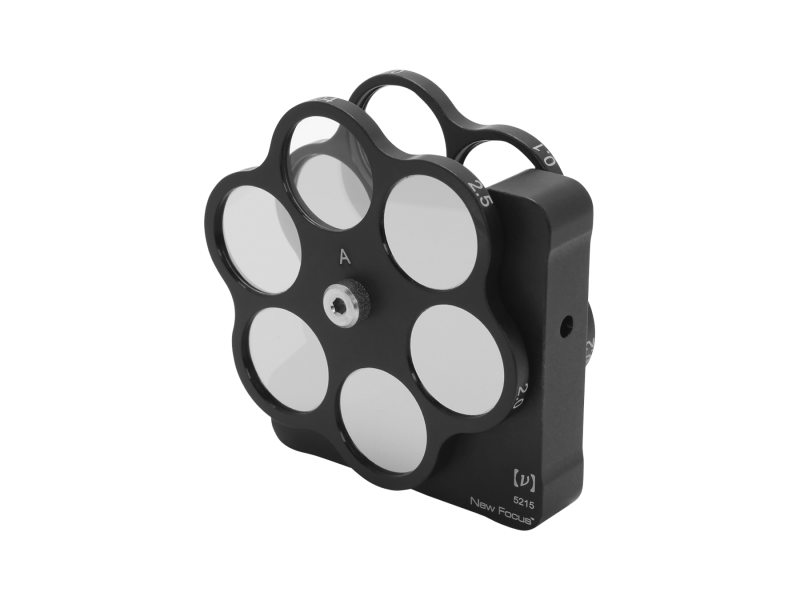

5215 Dual ND Filter Wheel

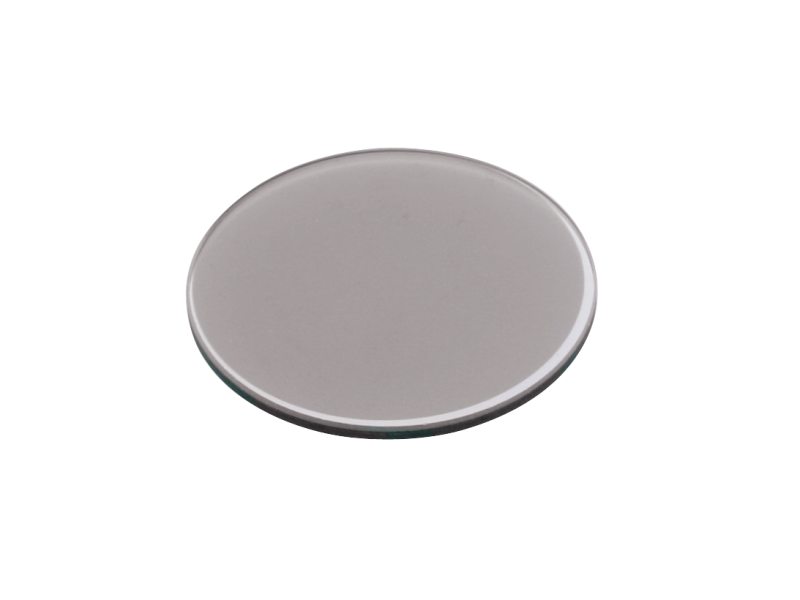

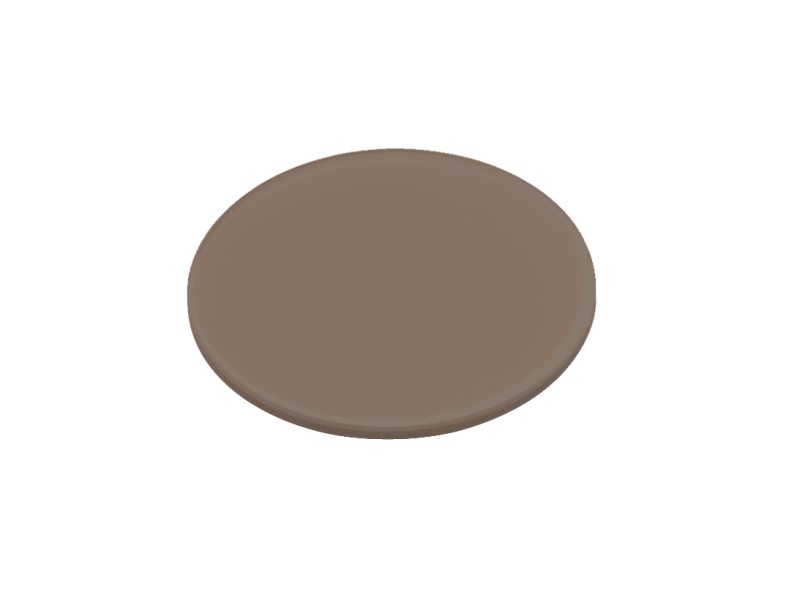

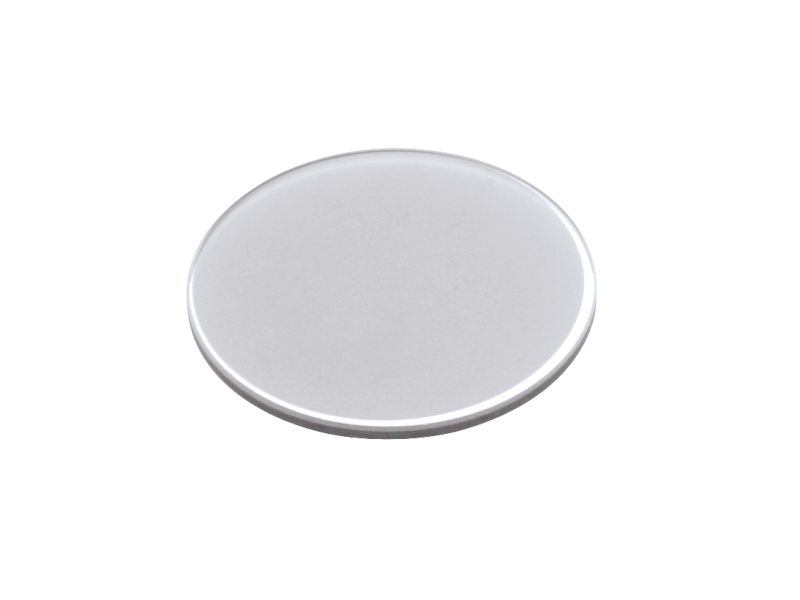

The 5215 Dual ND Filter Wheel contains a set of neutral-density (ND) filters mounted in a single easy-to-use unit. The simple two-wheel design of the Model 5215 gives you a wide range of optical densities, from 0.08 to 3.0. Each wheel includes six 1 in. diameter filter positions. The filter positions are mechanically indexed for precise positioning and the filters are made with Inconel metallic coatings on glass substrate. These wheels are metric compatible. The filters included in wheel A are the 5230

, 5235

, 5240

, 5241

, 5242

and 5243

. The filters included in wheel B are the 5230

, 5231

, 5232

, 5233

, 5234NF

and 5235

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

25.4 mm
Number of Filters

12
Filter Type

Neutral Density
Mechanism

Epoxy Mounted

Mounting Threads

8-32 (M4) Thru
Clear Aperture

24.1 mm
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Filter Shape

Round
Filter Diameter

25.4 mm
Number of Filters

12
Filter Type

Neutral Density
Mechanism

Epoxy Mounted

Mounting Threads

8-32 (M4) Thru
Clear Aperture

24.1 mm
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

5215b-Drawing (102.5 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
5254NF Indexed Filter Wheel, Dual Six Position, 1.0 in. Diameter	UNIVERSAL	In Stock	$552
9897-M Optical Filter Holder, Flip-Up™, 25.4 mm Diameter Filters, M4	METRIC	In Stock	$132

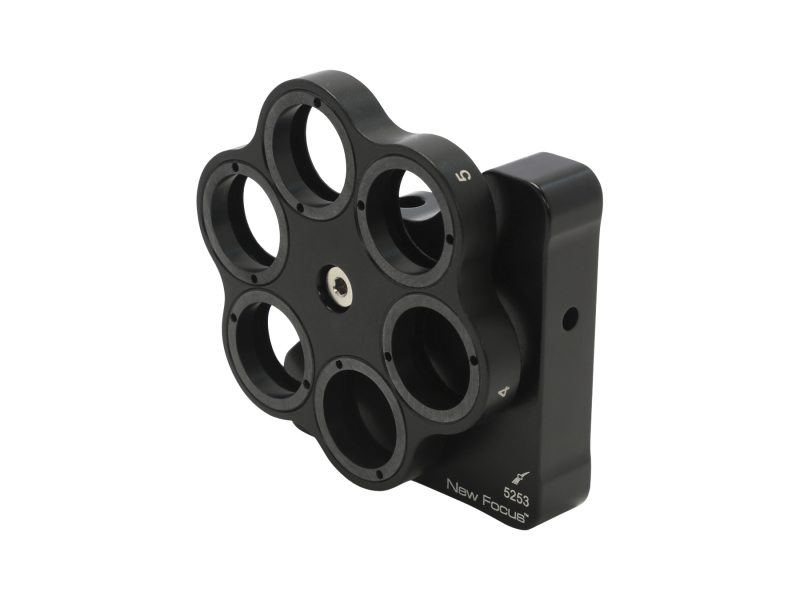

5253NF Indexed Filter Wheel, Six Position, 1.0 in. Diameter	UNIVERSAL	In Stock	$319

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

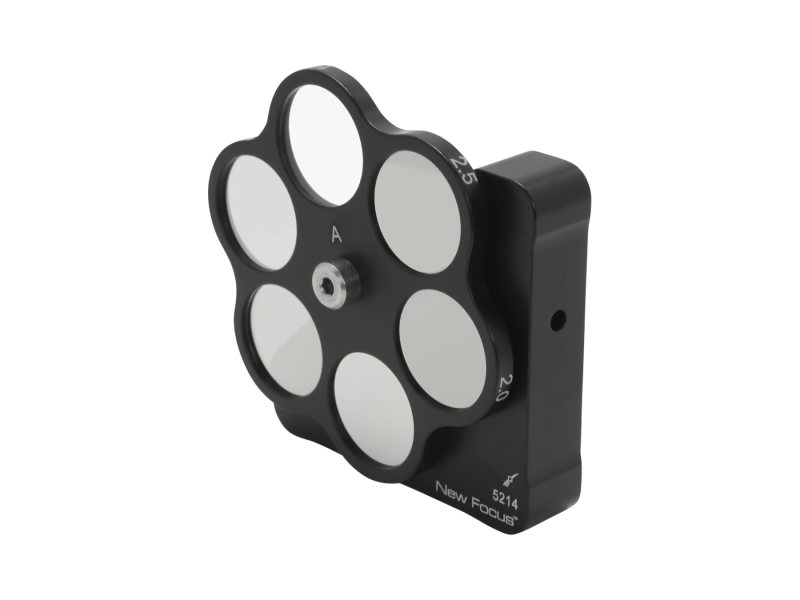

		5214-A ND Filter Wheel, Six 1.0 in. Filters Pre-Loaded, 0.04-2.5 OD	UNIVERSAL		In Stock	$488

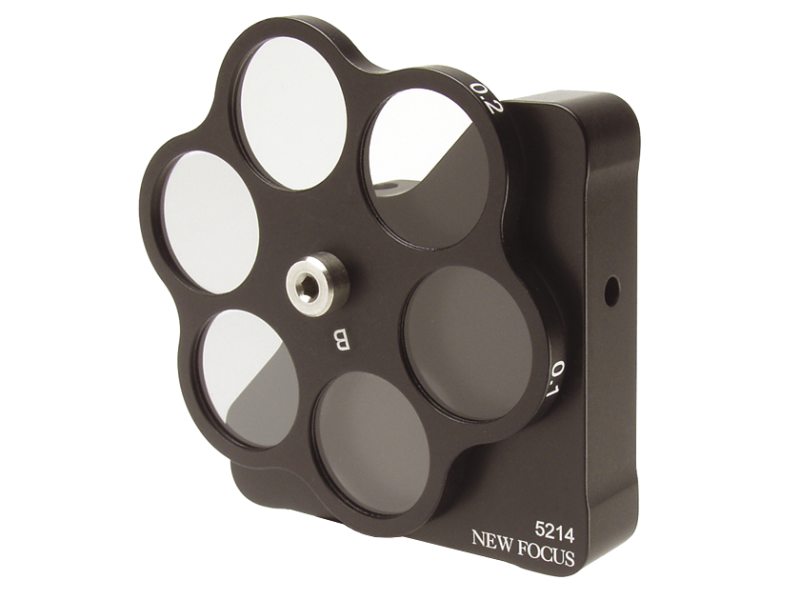

		5214-B ND Filter Wheel, Six 1.0 in. Filters Pre-Loaded, 0.04-0.5 OD	UNIVERSAL		In Stock	$488
