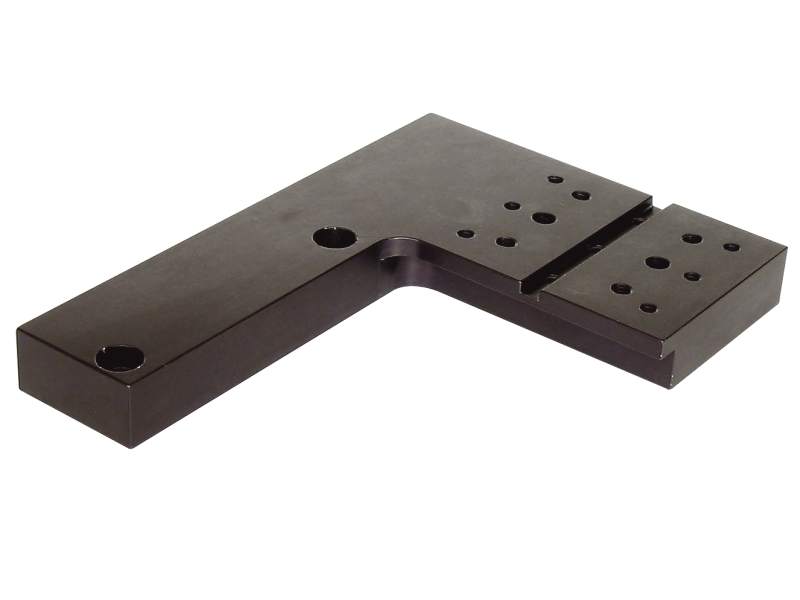

L-Shaped Bracket, Slot Length 46mm, 466A

L-Shaped Bracket, Slot Length 46mm, 466A

Model: 466A-149

$91

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The 466A-149 L Shaped Bracket has a 46 mm length slot and 6-32 tapped holes. It is used for mounting accessories along Y axis of 466A flexure stages. Includes 466A-154 clamp set.

Specifications

Technical Specs

Thread Type

6-32
Type

L Shaped Bracket

Thread Type

6-32
Type

L Shaped Bracket

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-149-264 (215 kB, PDF)
