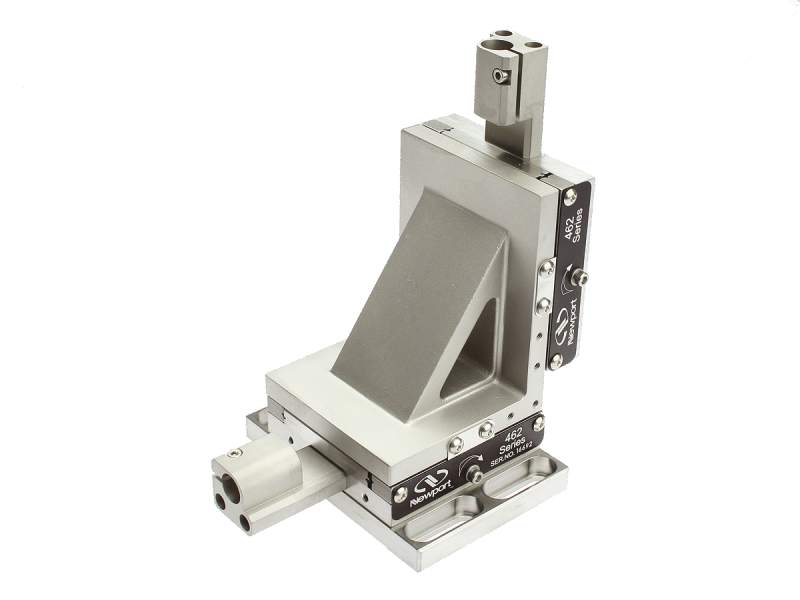

XZ Linear Stage, ULTRAlign, 25 mm, Crossed-Roller, 8-32 & 1/4-20

  • Axes of Travel
    X, Z
  • Maximum Stage Travel
    25 mm
  • Centered Normal Load Capacity
    191 N
  • Vertical Axial Load Capacity
    67 N
  • Angular Deviation
    <100 µrad
  • Material
    Stainless Steel
  • Bearings
    Crossed-Roller Bearings
  • Drive Location
    Center drive
  • Thread Type
    1/4-20
  • Recommended Adjustment Screw
  • Recommended Vernier Micrometer
  • Recommended Digital Micrometer
  • Recommended Lockable Micrometer
  • Recommended LTA Motorized Actuator
