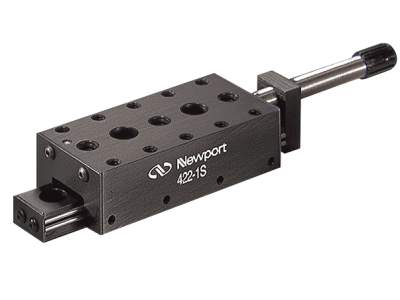

Miniature Linear Stage, Ball Bearing, 1.0 in. Travel, 8-32 and 1/4-20

Technical Specs

  • Axes of Travel
    X
  • Maximum Stage Travel
    25 mm
  • Thread Type
    8-32 and 1/4-20
  • Maximum Centered Load
    71 N
  • Vertical Load Capacity
    44 N
  • Angular Deviation
    <200 µrad
  • Material
    Aluminum
  • Bearings
    Single-Row Ball Bearings
  • Drive Location
    Center drive
  • Sensitivity
    1 µm
  • Travel Requirement
    12.7 to 25.4 mm
