410-RC Dual Rod Mounting Assembly

Dual Rod Mounting Assembly, Adjustable Height, 1/4-20 Thread

Model: 410-RC

$808.00

In Stock

Compare

Add to List

Product Series Overview

Dual Optical Rod Systems

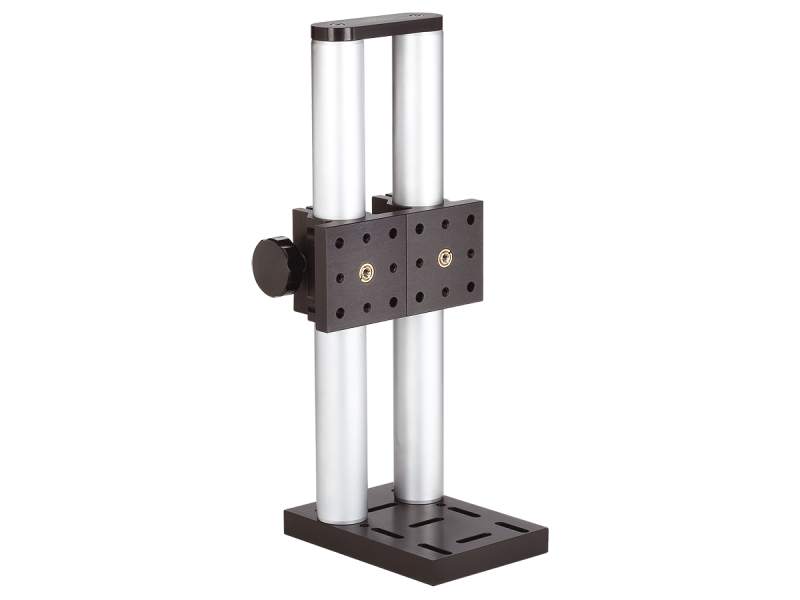

The 410-RC Adjustable Height Dual Rod Mounting Assembly positions heavy optical components and assemblies at various elevations with excellent stability. The assembly consists of two 1.5 in. (38.1 mm) diameter, 14.0 in. (355.6 mm) high solid steel rods attached to a heavy-duty base and connected together at the top. Each rod supports a rod clamp, Model 340-RC. The optional Model 410-RCP Mounting Plate attaches to the rod clamps and features a standard pattern of tapped holes for mounting virtually any component. For stable two-axis fine positioning using the Models 410-RC and 410-RCP, see our Model 401 stages.

Specifications

Technical Specs

Type

Dual Rod Assembly
Thread Type

1/4-20

Type

Dual Rod Assembly
Thread Type

1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

410 DWG-S (106.7 kB, PDF)

Other

410-RC RoHS Certificate (285 kB, PDF)
