Free Space Optical Receiver, 900-1700 nm InGaAs, 30 kHz to 850 MHz, AC-Coupled
The 1611FS-AC InGaAs Optical Receiver is used for experiments requiring up to 850 MHz bandwidths and 400 ps rise times. This free space photoreceiver offers a well-balanced combination of gain, bandwidth and very low noise. The InGaAs detector wavelength range is 900 to 1700 nm. For mounting it has an 8-32 mounting thread, and we include an M4 metric thread adaptor and tool.
An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables
Specifications
- Device TypePhotoreceiver (AC-Coupled)
- Detector Diameter0.1 mm

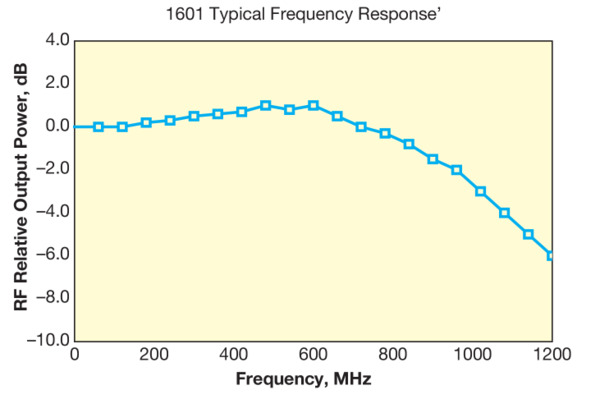

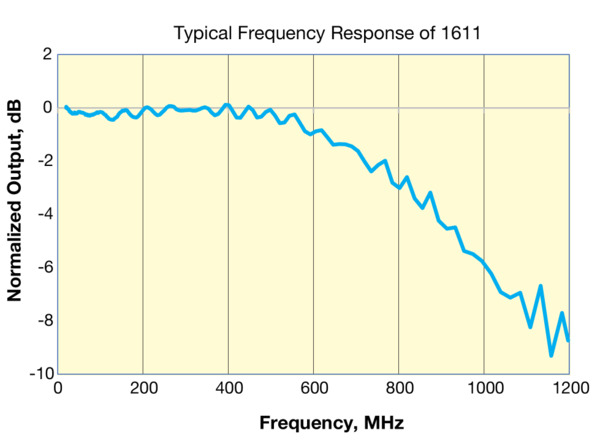

- 3 dB Bandwidth30 kHz to 850 MHz
- Wavelength Range900-1700 nm
- Optical InputFree Space
- Detector MaterialInGaAs
- Detector TypePIN
- Maximum Conversion Gain700 V/W
- Maximum Transimpedance Gain700 V/A
- NEP20 pW/√Hz
- Rise Time400 ps
- Saturation Power1 mW
- Maximum Pulse Power10 mW
- Peak Responsivity1.0 A/W
- DC Bias Monitor Bandwidth20 KHz
- DC Bias Monitor Transimpedance Gain-10 V/mA
- Output ConnectorSMA
- Output Impedance50 Ω
- Operating Temperature10 - 35 °C, < 70% RH
- Power Requirements±15 VDC, 300 mA
- Thread Type8-32 (includes M4 adapter)
Resources & Downloads
2D Product Drawings
16x1FS-AC DWG.pdf(325.6 kB, PDF)
Other
RoHS Declaration 1 GHz Family.pdf(238.9 kB, PDF) 16xx CE Declaration of Conformity.pdf(101.2 kB, PDF) 1611FS-AC RoHS Declaration(207.5 kB, PDF)
Manuals
90099909_B_16x1 Series 850-MHz 1-GHz User Manual.pdf(559.9 kB, PDF)
