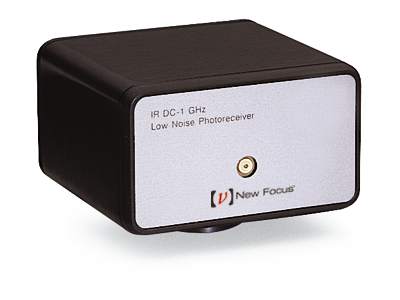

Free Space Optical Receiver, 320-1000 nm Silicon, 30 kHz to 1 GHz, AC-Coupled
The 1601FS-AC Silicon Optical Receiver is used for experiments requiring up to 1 GHz bandwidths and 400 ps rise times. This free space photoreceiver offers a well-balanced combination of gain, bandwidth and very low noise. The wavelength range is 320 to 1000 nm. For mounting it has an 8-32 mounting thread, and we include an M4 metric thread adaptor and tool.
An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables
Resources & Downloads
2D Product Drawings
16x1FS-AC DWG.pdf(325.6 kB, PDF)
Other
RoHS Declaration 1 GHz Family.pdf(238.9 kB, PDF) 16xx CE Declaration of Conformity.pdf(101.2 kB, PDF)
Manuals
90099909_B_16x1 Series 850-MHz 1-GHz User Manual.pdf(559.9 kB, PDF)
Related Products
Accessories (sold separately)
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 0901Lab Power Supply, ±15 VDC | In Stock |
Included Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 0923Accessory Cable, Pico (m8) Double-Ended, Male to Male, 1 m | In Stock | ||||
 | 0924Accessory Cable, Pico (m8) Male to Banana Plug, 1 m | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

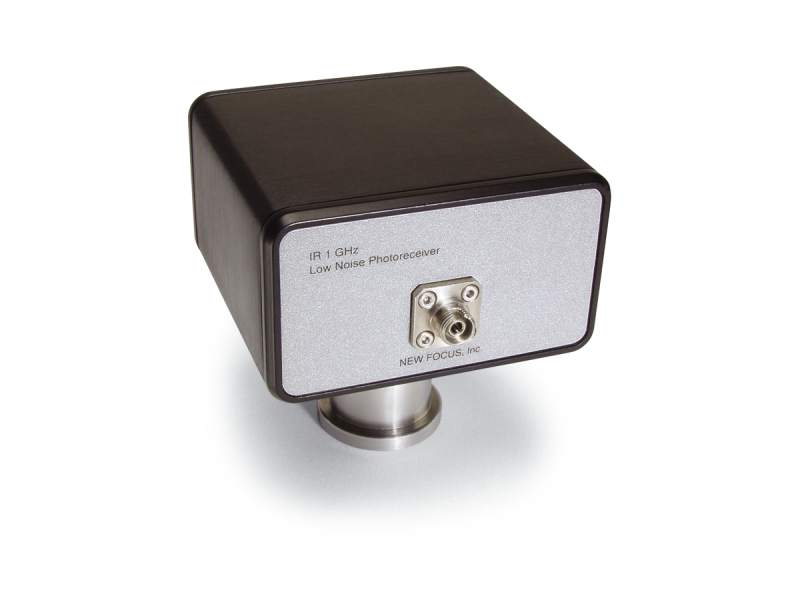

 | 1601FC-ACFiber-Optic Receiver, 320-1000 nm Silicon, 30 kHz to 1 GHz, FC/PC, AC-Coupled | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
