Elliptical Dielectric Mirror, 33.02 x 46.7 mm, λ/10, 1030-1090 nm
Elliptical Dielectric Mirror, 33.02 x 46.7 mm, λ/10, 1030-1090 nm
Model: 13E20DM.10
In Stock
Product Series Overview

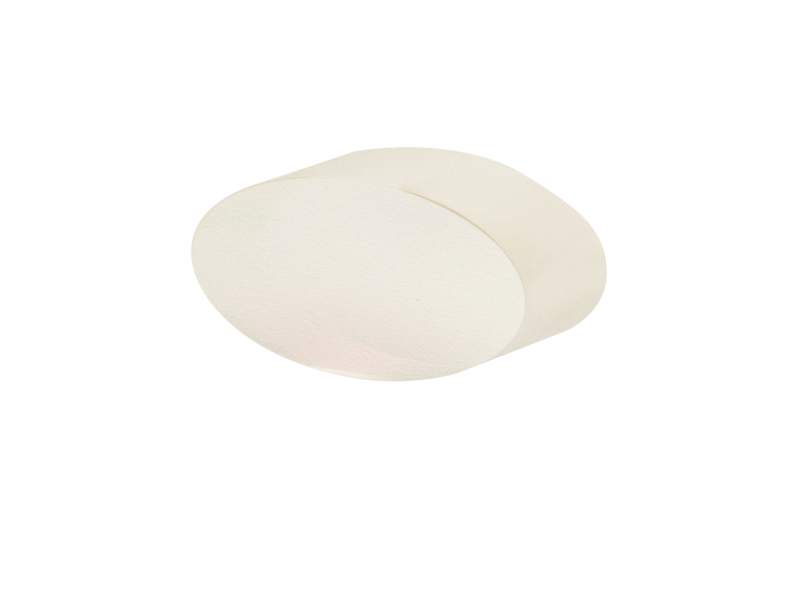

Elliptical Nd:YAG Laser Line Dielectric MirrorsThe 13E20DM.10 Laser Line Dielectric Elliptical Mirror is a highly efficient reflector optimized for a narrow 1030 to 1090 nm wavelength range. This 1.30 inch (33.02 mm) minor axis, 1.838 inch (46.70 mm) major axis, elliptical mirror is made from a 9.37 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The DM.10 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 1064 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Specifications
- Wavelength RegionIR
- Wavelength Range1030-1090 nm
- Mirror ShapeElliptical
- MaterialBorofloat® 33
- Coating TypeLaser Line Dielectric
- Coating CodeDM.10
- ReflectivityRs,Rp>99% @ 1030-1090 nm
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Substrate Number13E20
- Angle of Incidence0-45°
- Clear Aperture≥central 80% of diameter
- Back SurfaceGround
- Thickness9.4 mm
- Thickness Tolerance±0.25 mm
- Damage Threshold500 W/cm2 CW, 4 J/cm2 for 10 nsec pulses @ 1064 nm
- Chamfers0.38–1.14 mm face width
- Chamfers Angle Tolerance45° ±15°
- Cleaning
- Minor Axis33.02 mm
- Major Axis46.69 mm
