Thin Film Polarizer, Ultrafast, 14.3 x 28.6 mm, Rs>80%, 700-900 nm

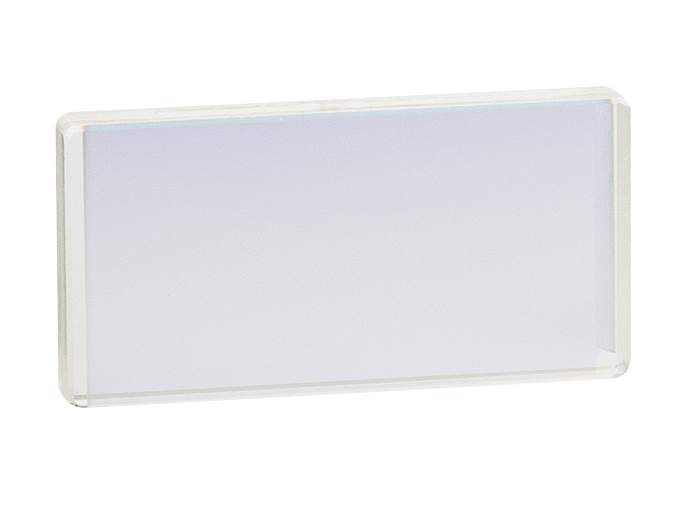

Thin Film Polarizers for Ultrashort Pulses

The 11B00UP.25 thin film polarizer provides superior performance and minimum pulse dispersion in ultrafast Ti:Sapphire regenerative amplifiers. It has a polarization extinction of 5:1 from 700–900 nm and supports higher laser energy density.

Specifications

Technical Specs

Size
14.3 x 28.6 mm
Wavelength Range
700-900 nm
Angle of Incidence
70 ±2°, angular tuning required
Material
Grade A N-BK7
Clear Aperture
Central elliptical area, major axis ≥22.9 mm,minor axis ≥11.4 mm
Damage Threshold
3 J/cm² @ 800 nm, 10 ns pulse, 10-100Hz
Surface Quality
10-5 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Extinction Ratio
T_P/T_S >5:1
Wedge
≤3 arc min

Thickness
3.2 mm
Thickness Tolerance
±0.25 mm
Size Tolerance
±0.13 mm

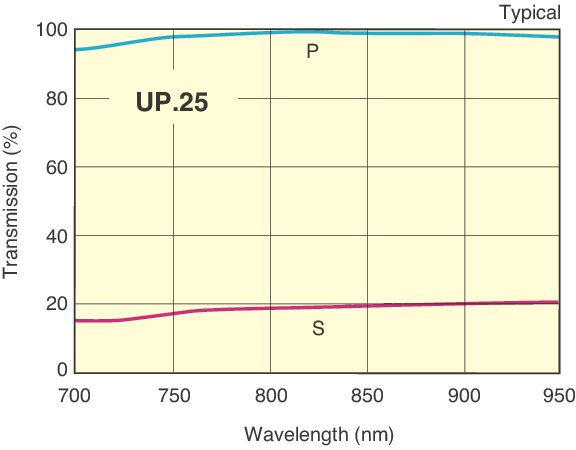

Transmission
T_P >96%
Wavefront Distortion
≤λ/8 at 632.8 nm over the clear aperture
Efficiency
T_{P, avg} >96%, R_{S, avg} >80%
Cleaning
See How to Clean Optics

Size
14.3 x 28.6 mm
Wavelength Range
700-900 nm
Angle of Incidence
70 ±2°, angular tuning required
Material
Grade A N-BK7
Clear Aperture
Central elliptical area, major axis ≥22.9 mm,minor axis ≥11.4 mm
Damage Threshold
3 J/cm² @ 800 nm, 10 ns pulse, 10-100Hz
Surface Quality
10-5 scratch-dig
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Extinction Ratio
T_P/T_S >5:1
Wedge
≤3 arc min

Thickness
3.2 mm
Thickness Tolerance
±0.25 mm
Size Tolerance
±0.13 mm
Transmission
T_P >96%
Wavefront Distortion
≤λ/8 at 632.8 nm over the clear aperture
Efficiency
T_{P, avg} >96%, R_{S, avg} >80%
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

ULTRAFA1-S(62.9 kB, PDF)

Other

11B00UP.25 RoHS Certificate(267.5 kB, PDF)
11B00UP.25_ROHS2-2021.pdf(280.2 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10RP42-3Achromatic Waveplate, Half-Wave, Polymer, 25.4 mm, 840 nm Center, 715-1000 nm	UNIVERSAL		In Stock	$1,649
		11B00UP.26Thin Film Polarizer, Ultrafast, 14.3 x28.6 mm, Rs>99%, 785-815 nm	UNIVERSAL		In Stock	$900
		10GT04AR.16Polarizer, Glan-Thompson Calcite, 25.4 mm Diameter, 650 to 1000 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,166

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

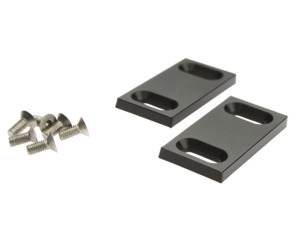

		UGP-KIT-2UGP Adapter Kit, Rectangular Optics	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
