UGP Adapter Kit, Rectangular Optics

UGP Adapter Kit, Rectangular Optics

Model: UGP-KIT-2

$42

4 Weeks

Compare

Add to List

Product Series Overview

Gimbaled Three-Axis Optic Tilt Mounts

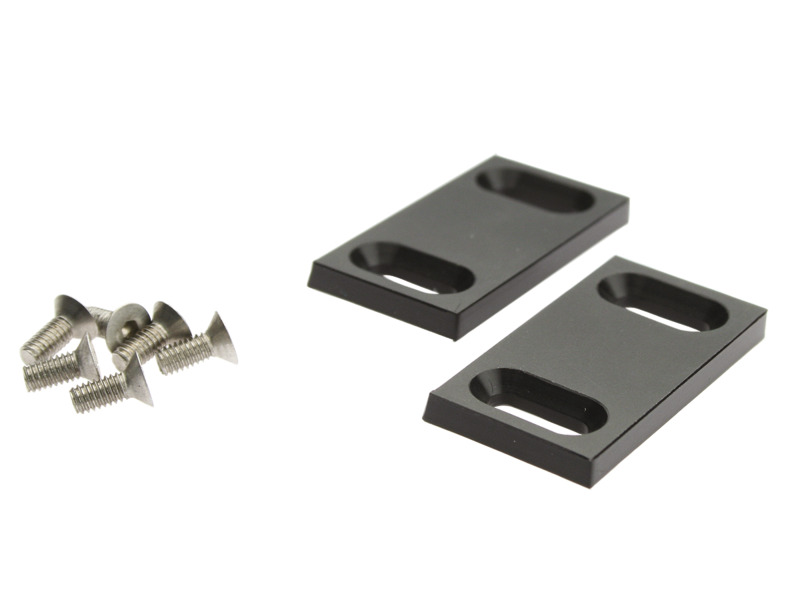

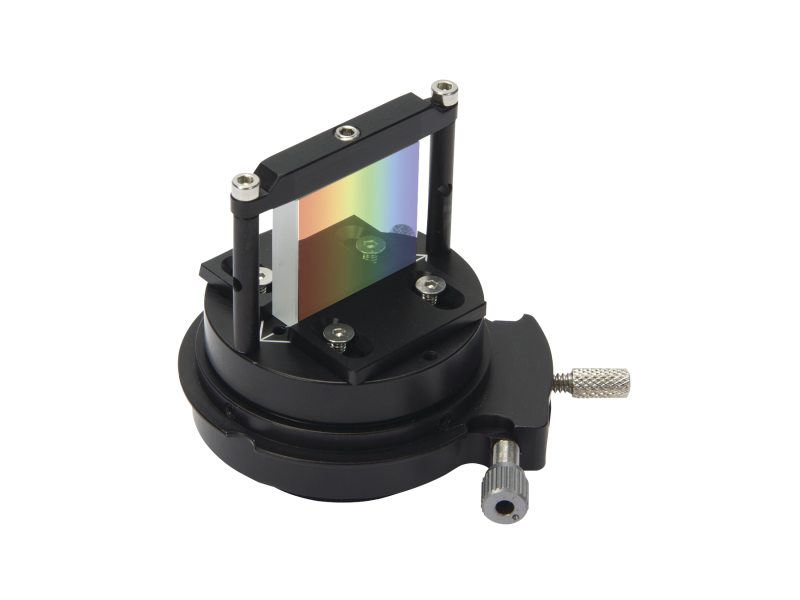

Rectangular Optics Adapter Kit for UGP-1 ULTIMA^® Gimbal Tilt Mount and OC1-CM-A OpticsCage⁺ Adjustable Cube Mount. This kit includes a pair of plates and six M2.5 flat head screws.

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UGP-KIT-2-257 (173.7 kB, PDF)

Other

UGP-KIT-2_RoHS2021.pdf (682.1 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL		In Stock	$72
		SK-TA Thread Adaptor Set, English	UNIVERSAL		In Stock	$320
		AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL		In Stock	$19.40
		BDH-1 Tool Holder, Ball Driver Set	IMPERIAL		In Stock	$72
		BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL		In Stock	$38

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		UGP-1 Gimbal Prism Mount, ULTIMA^®, 1 in., 100 TPI Adjustment Screws	UNIVERSAL		In Stock	$435
		OC1-CM-A Adjustable Cube Mount, Optics Cage Plus	UNIVERSAL		In Stock	$418
		33009FL01-280R Ruled Diffraction Grating, 25 x 25 mm, 500 nm, 17.5° Blaze, 1200 g/mm	UNIVERSAL		In Stock	$139
		UVBS15-2 UV Beamsplitter, 25.0 x 25.0 mm, 2.00 mm Thickness, 30R/70T ratio	UNIVERSAL		In Stock	$133
		PDOT-1S Polka Dot Beamsplitter, 25.4 x 25.4 mm, 250-2500 nm	UNIVERSAL		In Stock	$255
