Dielectric Mirror, ValuMax, Borofloat, 25.4 mm, 488-694 nm

The 10D620BD.1 is an uncoated ValuMax^® Dielectric Visible Broadband Mirror with a diameter of 25.4 mm, thickness of 6.0 mm, and flatness of λ/10. By taking advantage of advanced polishing techniques and our high volume manufacturing, ValuMax^® mirrors are truly cost effective. This family of mirrors boasts six standard metallic and dielectric broadband coatings, covering the UV, visible, and IR, and are available in 25.4 mm (1.0 in.) diameter utilizing Borofloat^® 33 substrates. This mirror has a 40-20 surface quality and is coated for 488 - 694 nm. This product is also available in 10-piece saving pack .

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
488-694 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric
Coating Code
BD.1
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D620

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_{S, avg}>99%, R_{P, avg}>98% @ 488-694 nm
Damage Threshold
500 W/cm² CW
3 J/cm² @10 ns, 10 Hz, 532 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
VIS
Wavelength Range
488-694 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric
Coating Code
BD.1
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D620

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_{S, avg}>99%, R_{P, avg}>98% @ 488-694 nm
Damage Threshold
500 W/cm² CW
3 J/cm² @10 ns, 10 Hz, 532 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Other

10D620BD.1 RoHS Certificate(702.4 kB, PDF)
BD.1 Raw Data.xlsx(89.2 kB, XLSX)

Related Products

Compatible 1 Inch Mirror Mounts

The following mirror mounts are recomended for 1 inch mirrors.

Description	Compatibility	Avail.	Price
M1QMirror Mount, Lab Standard, Clear Edge, 1.0 in., 2 Knob Actuators	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$48
M1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
SU100-F2KMirror Mount, Suprema^®, 1.0 in, Two 100 TPI Locking Knob Actuators	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$170
P100-AI21Mirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 2 Locking Allen-Keys	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$119

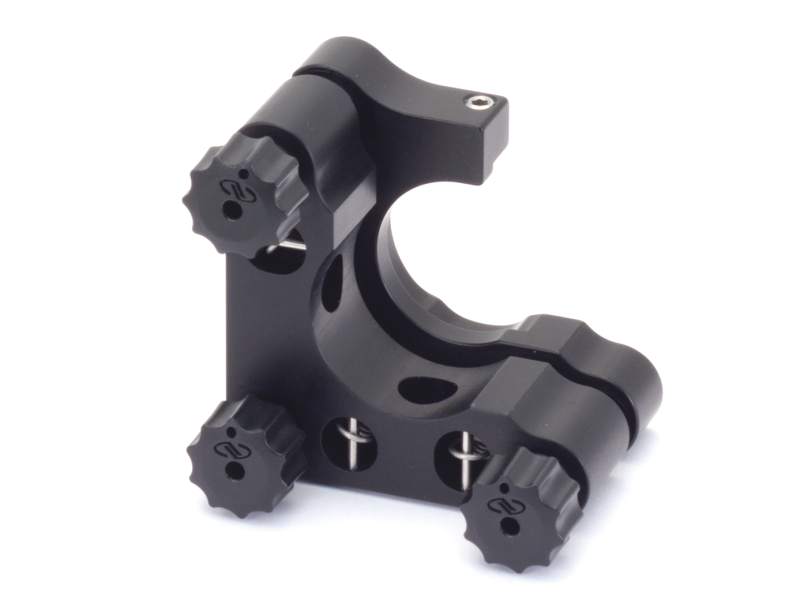

U100-SMirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 3 Direct-Thread Knobs	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$99
