This magnetic disk base is ideal for quickly positioning small components mounted via a single 1/4-20 or M6 threaded bolt, such as VPH Series Post Holders.
Additional CAD file downloads are not available for this product.

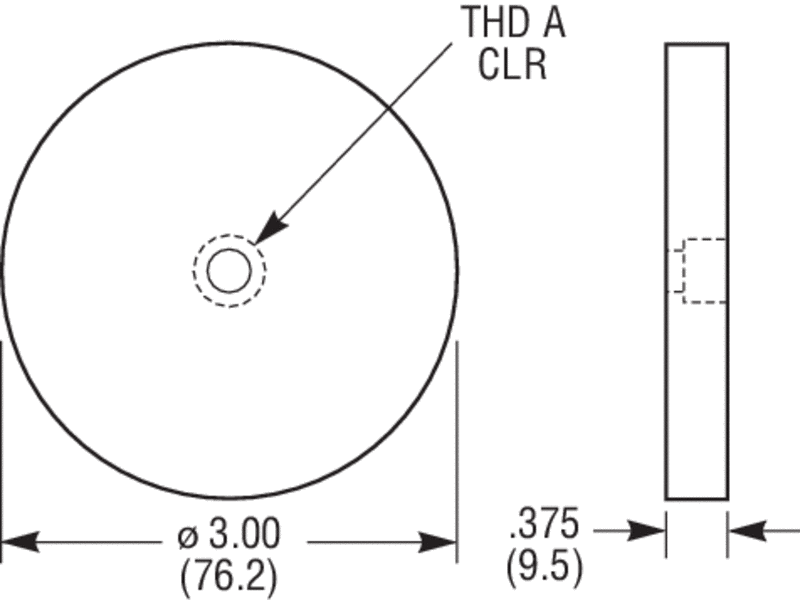

utility-magnetic-disk-base - Drawings
Additional drawings are not available for this product.
Features
Universal Component Mounting

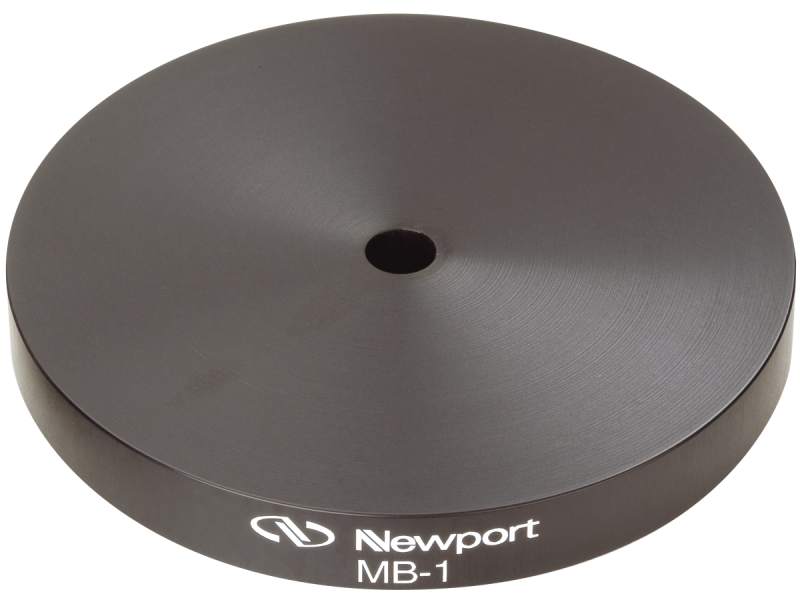

The MB-1 magnetic disk base features a counterbored hole for mounting imperial components with 1/4-20 cap screws or metric components with M6 cap screws.
Fast and Flexible Ferromagnetic Surface Mounting
Magnetic bases reduce experimental set-up time by allowing free positioning and instant clampdown of optical components. They are the ideal accessories for all laboratories with ferromagnetic work surfaces such as Newport optical tables and breadboards.
