Overview

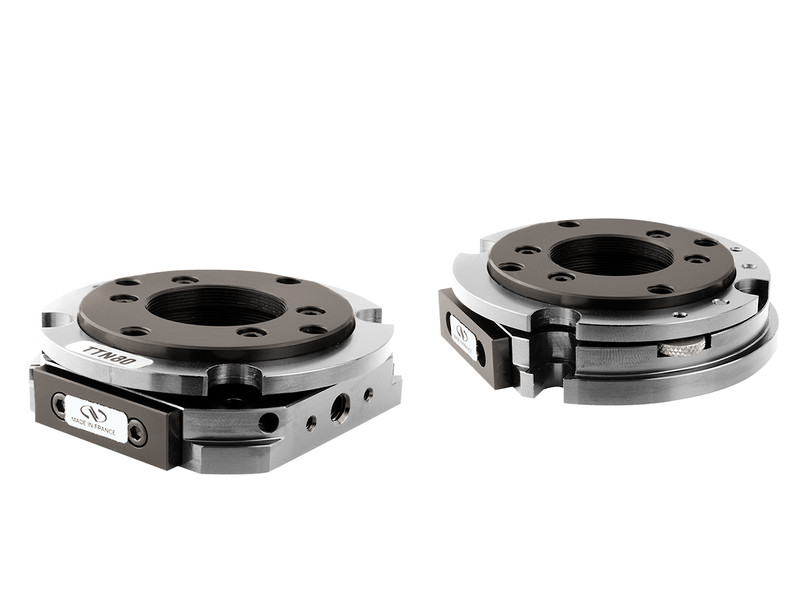

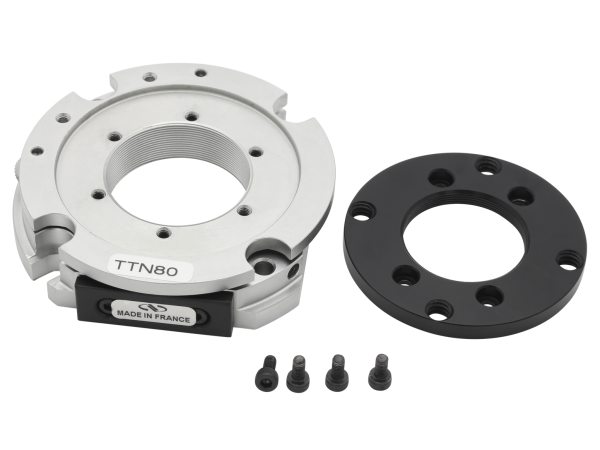

The TTN80 Tilt Platform is a compact module that provide sensitive adjustment of parallelism between a base plate and top plate or optical mount. ±2° tip and tilt are achieved without altering the height of the mount along the central axis. These platforms are adjusted by small thumbwheels that maintain an overall compact form.

Low profile flexure design
Extremely stiff, steel construction
Post or Base Mountable
Two-axes of tilt

See All Features

Products

Show entries

Search:

		Compare	Model	ranking	Drawings, CAD & Specs		Tilt	Tip	Sensitivity	Thread Type	Load Capacity	Availability	Featured Item	Price		Brand
		M-TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6 $1,103 In Stock	M-TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6	0.0		0.0	±2°	±2°	4 arc sec	M4 and M6	20 N	In Stock		$1,103		Newport
		TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20 $1,103 In Stock	TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20	0.0		0.0	±2°	±2°	4 arc sec	8-32 and 1/4-20	20 N	In Stock		$1,103		Newport

Showing 1 to 2 of 2 entries

Previous1Next

Specifications

Search:

Models	TTN80 Model: TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 4.5 lb. Load, 8-32 and 1/4-20 $1,103 In Stock See Full Product Details Product Series Overview Two-Axis Steel Tilt Platforms with Aperture	M-TTN80 Model: M-TTN80 Tilt Platform, Two-Axis, ±2° Tilt and Tip Range, 20 N Load, M4 and M6 $1,103 In Stock See Full Product Details Product Series Overview Two-Axis Steel Tilt Platforms with Aperture
Tilt	±2°	±2°
Tip	±2°	±2°
Sensitivity	4 arc sec	4 arc sec
Load Capacity	20 N	20 N
Material	Steel	Steel
Included Actuators	Thumbwheels	Thumbwheels
Thread Type	8-32 and 1/4-20	M4 and M6

Showing 1 to 7 of 7 entries

Features

Post or Base Mountable

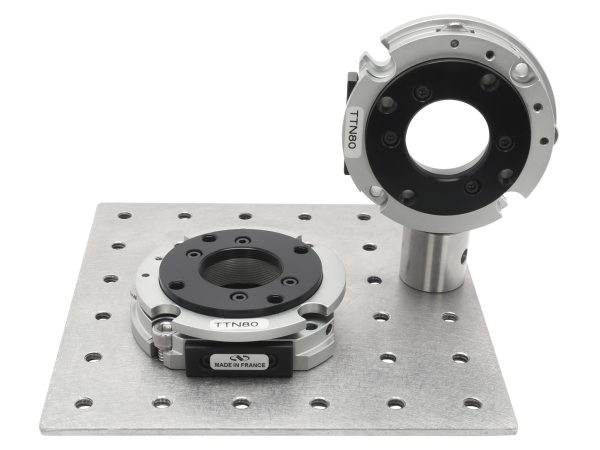

The TTN80 Tilt Platform can be mounted horizontally to a bread board for adjusting parallelism between a base plate and top plate or post mounted vertically for adjusting optical elements.
