Spectroscopy Lens Holder Assemblies

Getting light into and out of a monochromator or spectrograph is one of the most important considerations when configuring a system. Newport offers a variety of lens holders, both adjustable and stationary, to meet the needs of most applications. Lenses are ordered separately and may be replaced as applications change or evolve.

Adjustable focusing lens assembly
XYZ focusing lens assemblies
XY focusing lens assembly
Spacer tube lens kits

See All Features

Description	Compatibility	Avail.	Price
77258Focusing Lens Assembly, X-Y Flanged 2 mm Adjustment	UNIVERSAL	In Stock	$860
77259XYZ Focusing Lens Assembly, Req. 38.1 mm Plano-Convex or Bi-Convex Lens	UNIVERSAL	Contact Us	$1,375
77260XYZ Focusing Lens Assembly, Req. (1) or (2) 25.4 mm Plano-Convex Lenses	UNIVERSAL	Contact Us	$1,720
77330Focusing Lens Assembly, Req. 1 inch Dia. Lens, 1.5 inch Series Flanges	UNIVERSAL	4 Weeks	$255

Features

Adjustable Focusing Lens Assembly

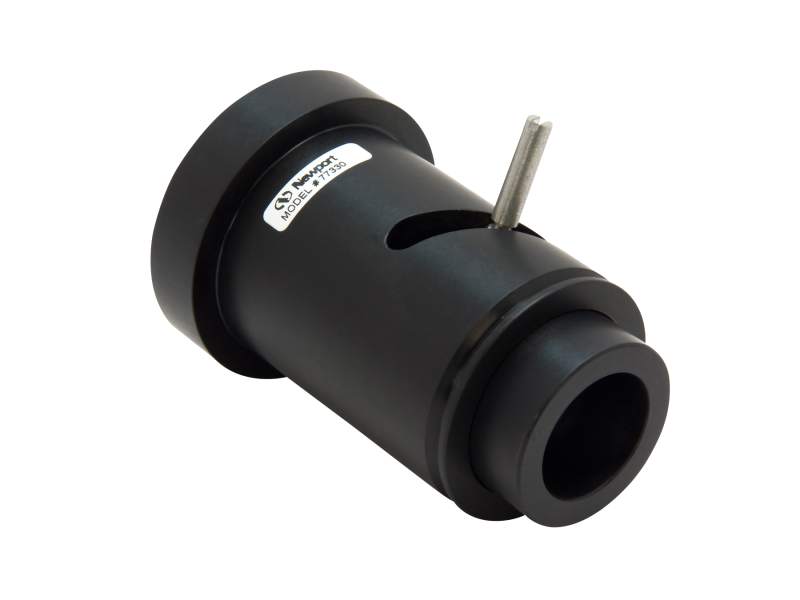

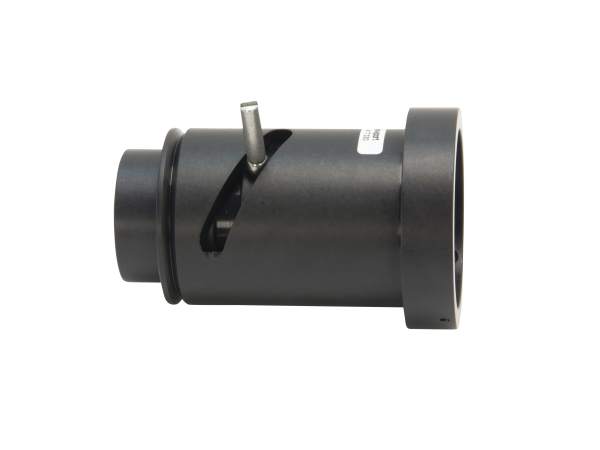

Model 77330 is a useful accessory for Oriel^® monochromators and spectrographs. It re-images a source onto the instrument’s input slit or images the monochromator output onto a detector, fiber or sample. It lacks X-Y image adjustment, so it is best used in arrangements where precision alignment is not required (e.g. large source and targets), or where the adjustments are already available (such as with Oriel research lamp housings). The 77330 features standard Oriel 1.5-in. series female and male flanges so it can mount directly to monochromators and other instruments with enclosed beam paths and aligned optical axes.

This assembly accepts a single 1-in. (25-mm) diameter lens (sold separately). The clear aperture is 0.8 in. (20 mm). The lens is housed inside a lens barrel with a focusing sleeve, with a manual focusing lever to move the lens. Threaded holes in the lens barrel let you set the range of the lever adjust, leading to a total lens adjustment range of 2.9 in. (74 mm). For most imaging applications, we recommend a 32-mm focal length lens. The distance from the flange to the slit plane on our monochromators and spectrographs is 0.74 in. (19 mm). With a 32-mm focal length lens, the F/# of the focused beam is F/4.

Dual-lens XYZ Focusing Lens Assembly

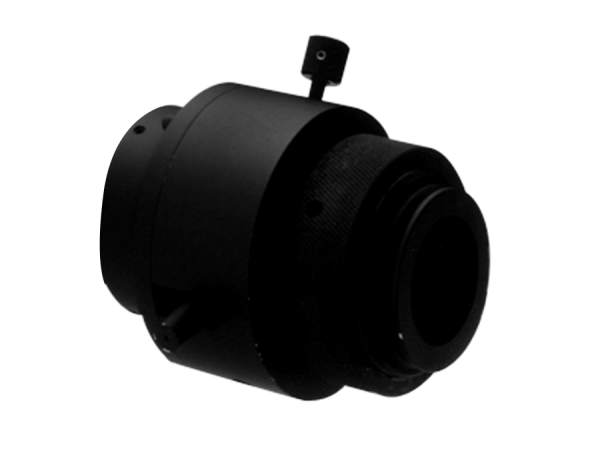

Model 77260 is best used for imaging the output of a monochromator onto a detector or fiber. It features a 20-mm clear aperture, can hold two lenses (sold separately), and includes an integral filter holder and manual shutter. The first lens collimates light from the source or monochromator exit and is adjustable ±0.12 in. (3 mm) in the X and Y directions for precise positioning of the image onto small targets, such as fiber bundles. The second lens focuses the collimated beam and can be adjusted 2.9 in. (74 mm) in the Z axis to focus the light.

Single-lens XYZ Focusing Lens Assembly

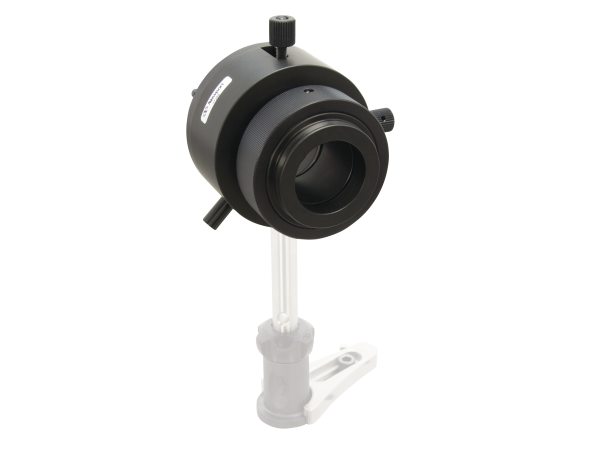

The 77259 assembly holds a single lens (sold separately) with X, Y and Z adjustments and is ideally used to focus a collimated source onto a small target, such as a slit, fiber or cuvette. This more economical version of an XYZ focusing lens assembly does not include a filter holder or shutter. Its large 1.3-in. (33 mm) clear aperture provides more than twice the throughput of model 77260. With a plano-convex lens, the 77259 will focus a collimated beam or collimate a diverging beam. With a biconvex lens, it will refocus a beam but will also introduce a significantly higher level of spherical aberrations.

XYZ focusing lens assemblies

To precisely image a source onto a small target, use the 77259 or 77260 focusing assemblies. They are ideal for re-imaging a source onto an Oriel monochromator or spectrograph slit, fiber bundle or cuvette. One of these assemblies may also be used to image the monochromator output onto a detector or fiber. Each model has X, Y and Z adjustments. Both require at least one lens. The lenses are not included; use the Ordering Information Tables as a guide for selecting the proper focal length lens or lenses. Although one can use a single lens in the 77259 to image a source, it is suggested that the light first be collimated and then focused. The two-lens system of the 77260 reduces spherical aberration by a factor of four, because the light is collimated prior to focusing.

The 77260 is best used for imaging the output of a monochromator onto a detector or fiber. It includes an integral filter holder and manual shutter. The 77260 features a 20 mm clear aperture and holds two lenses. The first lens collimates light from the source or monochromator exit, while the second focuses the collimated beam. Lens 1 is adjustable ±0.12 inches [3 mm] in the X and Y directions for precise positioning of the image onto small targets, such as fiber bundles. Lens 2 has 2.9 inches [74 mm] of Z adjustment to focus the light.

The 77259 is ideally used to focus a collimated source onto a small target, such as a slit, fiber or cuvette. This more economical version does not include a filter holder or shutter. The large 1.3-inch [33 mm] clear aperture provides more than twice the throughput of the 77260. The 77259 uses only one lens. With a plano convex lens, the 77259 will focus a collimated beam, or collimate a diverging beam. With a biconvex lens, it will refocus a beam, but introduces a significantly higher level of spherical aberrations.

XY Focusing Lens Assembly

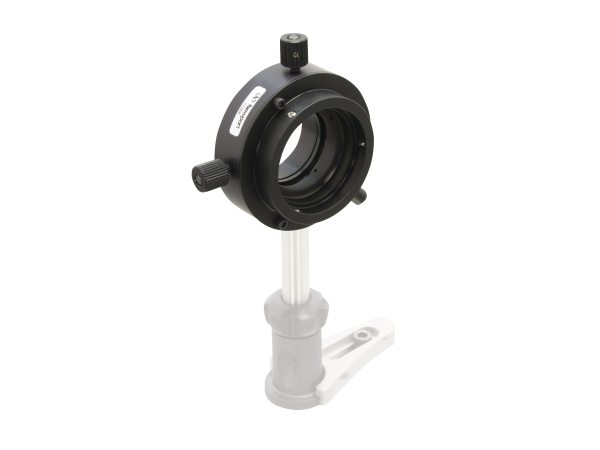

The model 77258 is a simple, adjustable, low cost lens holder. It is frequently used for focusing the output of a collimated source onto a monochromator. The 77258 allows the lens position to be adjusted by 2 mm in the X and Y directions. The large 1.38-in. (35-mm) clear aperture holder is designed as an alternative for those who do not need a lens holder with focus adjustment. The standard Oriel 1.5-in. series female flange couples directly to Oriel spectroscopy instruments, or the 77258 can be rod-mounted using a #1/4-20 threaded hole.

Spacer Tube Lens Kits

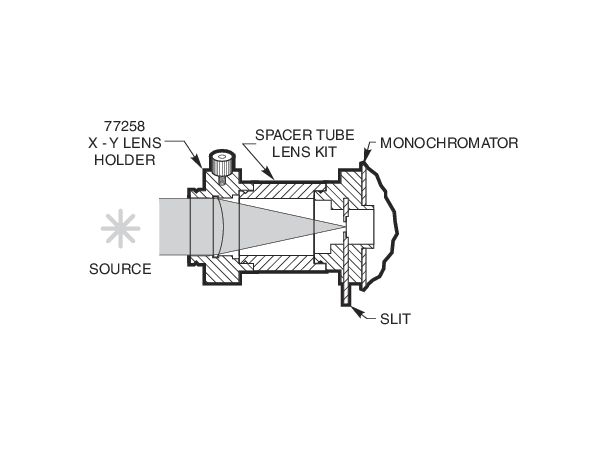

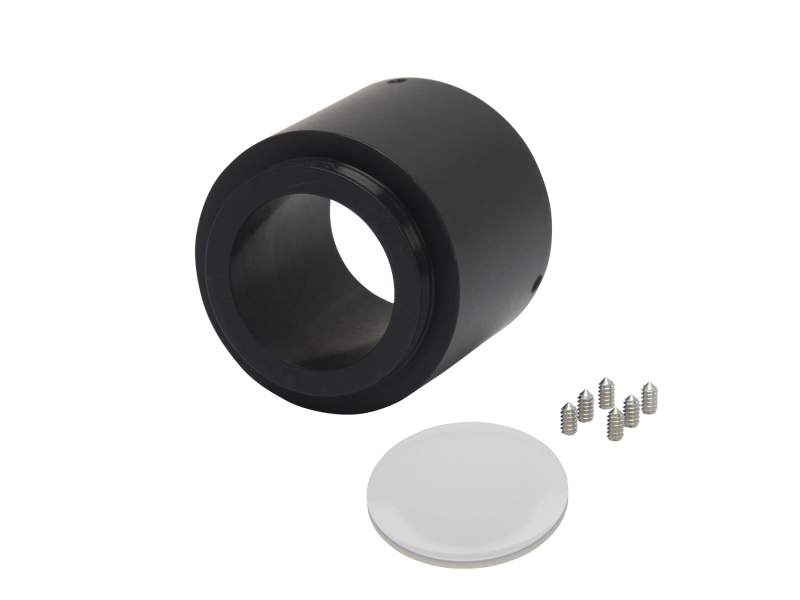

are available to hold a biconvex or plano-convex lens. They may be used in conjunction with the 77258 to focus collimated light into a monochromator or image the diverging output of a monochromator onto a detector. The F/# of the 1.5-in. (38-mm) lens matches the input acceptance cone of the monochromator. This large lens collects all of the output from an Oriel 1.5-in. series light source and is available in glass and fused silica models.

Accessories

Spacer Tube Lens Kits

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77321Focusing Lens Kit, Spacer Tube, 75 mm Focal Length, Fused Silica	UNIVERSAL		Contact Us	$410

1 inch Diameter Focusing Lenses

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		39213Focusing Lens, 25.4 mm, N-BK7/A, Bi-Convex, 33 mm FL, Uncoated	UNIVERSAL		In Stock

1.5 inch Diameter Focusing Lenses

Description	Compatibility	Avail.	Price
39223Focusing Lens, 38.1 mm, N-BK7/A, Bi-Convex, 50 mm EFL, Uncoated	UNIVERSAL	In Stock	$205
40570Focusing Lens, Plano-Convex, 38.1 mm, N-BK7/A, 150 mm EFL, Uncoated	UNIVERSAL	In Stock	$85
39225Focusing Lens, 38.1 mm, N-BK7/A, Bi-Convex, 75 mm EFL, Uncoated	UNIVERSAL	In Stock	$130
39323Bi-Convex Focusing Lens, 38.1 mm, Fused Silica, 51 mm EFL, Uncoated	UNIVERSAL	6 Weeks	$415
41540Focusing Lens, Plano-Convex, 38.1 mm, UVFS, 50 mm EFL, Uncoated	UNIVERSAL	In Stock	$265
41570Focusing Lens, Plano-Convex, 38.1 mm, UVFS, 150 mm EFL, Uncoated	UNIVERSAL	In Stock	$245
40540Focusing Lens, Plano-Convex, 38.1 mm, N-BK7/A, 50 mm EFL, Uncoated	UNIVERSAL	In Stock	$155
