Compare Model Drawings, CAD & Specs Availability Price
B320-ACC-001
Adaptor Plate, Square, VIB320 Series Isolators
$64
B320-ACC-001 Adaptor Plate, Square, VIB320 Series Isolators $64
B320-ACC-002
Adaptor Plate, Round, VIB320 Series Isolators
$64
B320-ACC-002 Adaptor Plate, Round, VIB320 Series Isolators $64
B320-ACC-003
Adaptor Plate, Rectangular, VIB320 Series Isolators
$62
B320-ACC-003 Adaptor Plate, Rectangular, VIB320 Series Isolators $62
B320-ACC-019
Threaded Stud, 1/4-20 x 1.0 in., VIB320 Series Isolators
$62
B320-ACC-019 Threaded Stud, 1/4-20 x 1.0 in., VIB320 Series Isolators $62
B320-ACC-020
Threaded Stud, 3/8-16 x 1.25 in., VIB320 Series Isolators
$62
B320-ACC-020 Threaded Stud, 3/8-16 x 1.25 in., VIB320 Series Isolators $62
B320-ACC-021
Threaded Stud, M6 x 25 mm, VIB320 Series Isolators
$62
B320-ACC-021 Threaded Stud, M6 x 25 mm, VIB320 Series Isolators $62
B320-ACC-022
Threaded Stud, M10 x 32 mm, VIB320 Series Isolators
$62
B320-ACC-022 Threaded Stud, M10 x 32 mm, VIB320 Series Isolators $62

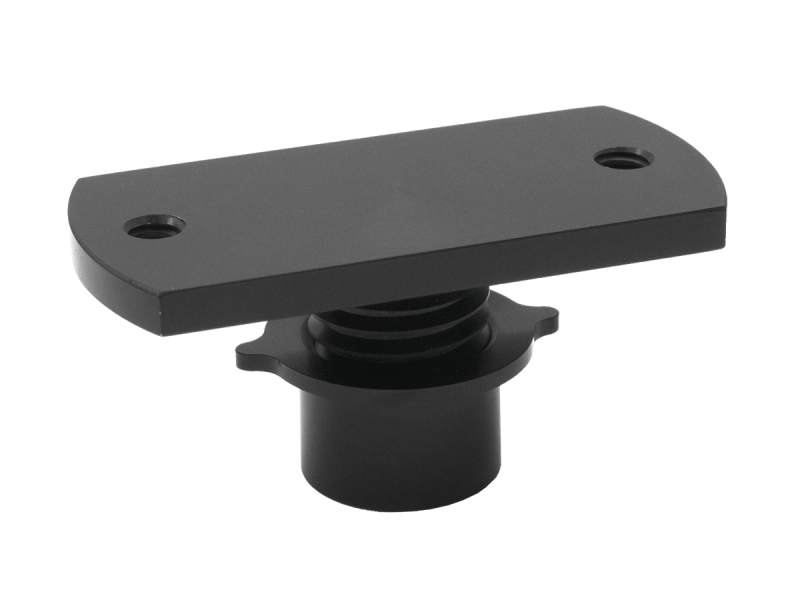

B320-ACC-023
Threaded Leveler Bar, 1/4-20, VIB320 Series Isolators
$63
B320-ACC-023 Threaded Leveler Bar, 1/4-20, VIB320 Series Isolators $63
B320-ACC-024
Threaded Leveler Bar, M6, VIB320 Series Isolators
$63
B320-ACC-024 Threaded Leveler Bar, M6, VIB320 Series Isolators $63
B320-ACC-025
Slotted Leveler Bar, Universal, VIB320 Series Isolators
$63
B320-ACC-025 Slotted Leveler Bar, Universal, VIB320 Series Isolators $63

Features

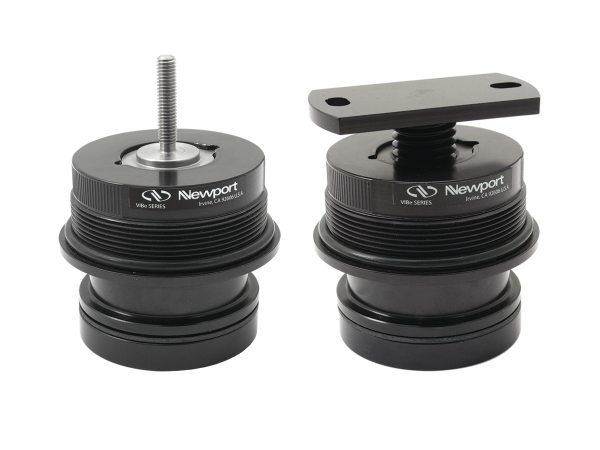

VIB320 Isolator Leveler Attachments

The threaded studs and threaded leveler bars are designed to attach VIBe™ VIB320 Mechanical Vibration Isolators to underside of another plate or platform. Each option provides ±0.2 in. (5 mm) vertical adjustment.

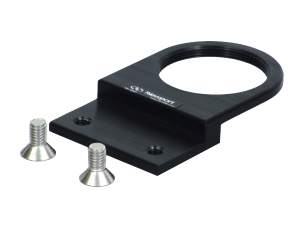

VIB320 Isolator Adapter Plates

The adapter plates allow the VIB320 isolators to be bolted down to an optical table, breadboard or other frame structures. Three shapes are offered - square, rectangular or round.

Installation of Threaded Stud

Installation of Adapter Plate
