These LTA actuators are combined with a CONEX™ controller and are designed to directly replace manual micrometers in existing manual stages and other opto-mechanical components to enable automated motion solutions.
Robust LTA DC servo actuators for industrial applications
Low noise linear amplifier technology for DC servo motor drives
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Encoder Resolution
0.00737358 µm
0.03539317 µm
MTBF
10,000 h (25% load, 30% Duty cycle)
10,000 h (25% load, 30% Duty cycle)
Computer Interfaces
USB
USB
Cable Length
3 m
3 m
Compliance
RoHS 3, CE
RoHS 3, CE
Showing 1 to 18 of 18 entries
Features

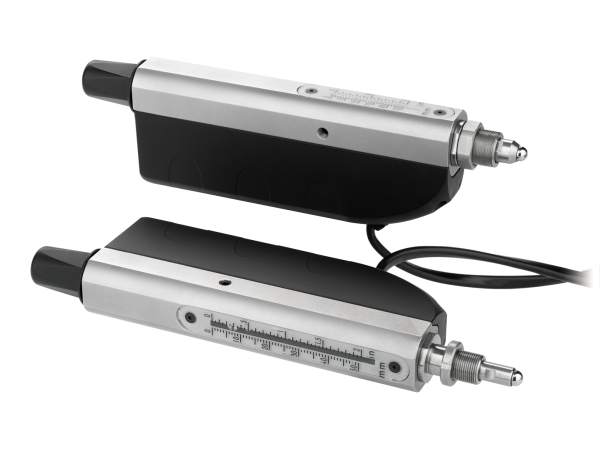

LTA DC Servo Actuators
These CONEX kits include either a high speed (LTA-HS) or high load (LTA-HL) DC servo linear actuator. LTA actuators include:
Manual adjustment knob which permits quick positioning of the actuator when the motor is off.
Visible scale that indicates coarse actuator position in both millimeters and inches.
Limit switch that can be manually adjusted.
Non-rotating tip that prevents wear and eliminates periodic motion variations when the actuator is moving.

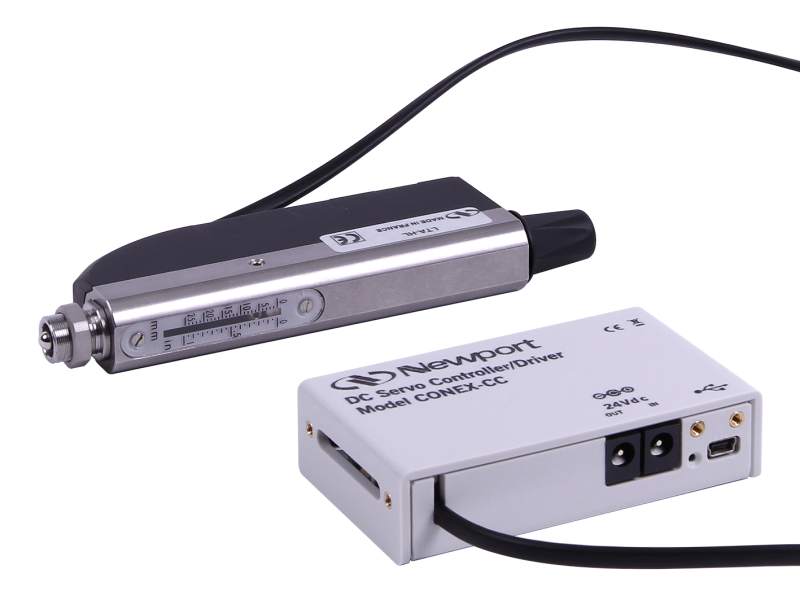

Compact DC Servo Motion Controller
In terms of size, the CONEX-CC motion controller is comparable to a deck of cards. Up to six CONEX-CC controllers can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. The low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors. It delivers smooth motion, with less electrical noise and significantly less motor heating.
Out-of-the-box PC Control
For out-of-the box control, the CONEX controller is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI. The integrated USB interface, provides a fast ubiquitous communication protocol. For OEM's or security sensitive applications, RS-232 and RS-485 communications are embedded onto the CONEX controller.
Simple Programming with Extensive Language Options
Advanced application programming is simplified by using mnemonic ASCII commands. Newport provides a free GUI that allows the user to access and execute over 60 intuitive ASCII commands. A managed Microsoft .NET assembly (DLL) is provided for programming custom applications in C#, Labview, Matlab, Python and other .NET compatible languages.
Scalable Architecture
CONEX motion controllers can be connected via daisy chain to create multi-axis systems. For added convenience, the power can be shared with up to 5 CONEX-CC modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system.
is an essential need to supply power to your Conex devices and it is purchased separately. The supplied power can be shared by modules using the optional CONEX-PS-CB
