These accessories mount to multimode fiber positioners to provide flexibility in light coupling mechanisms. Microscope objectives and bare aspheric lenses can mount directly to the positioners for direct light coupling into the fiber.
Adapters and coupler bodies attach directly to multimode fiber positioners
Includes adapters to attach objective and aspheric lenses securely
Adapters for coupling to connectorized fibers are also available
Additional CAD file downloads are not available for this product.
fiber-positioner-accessories - Drawings
Additional drawings are not available for this product.
Features
Coupler Bodies

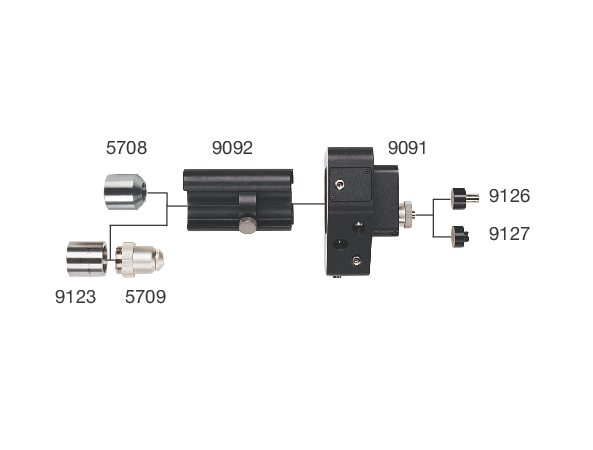

The coupler body attaches either to Model 9091 or Model 9051 fiber aligners (but not Model 9095) for coupling optics directly to the aligner. The coupler body is designed to support both the Model 9123NF objective holder or Models 5708 aspheric adapter.
Connectorized Fibers Adapters

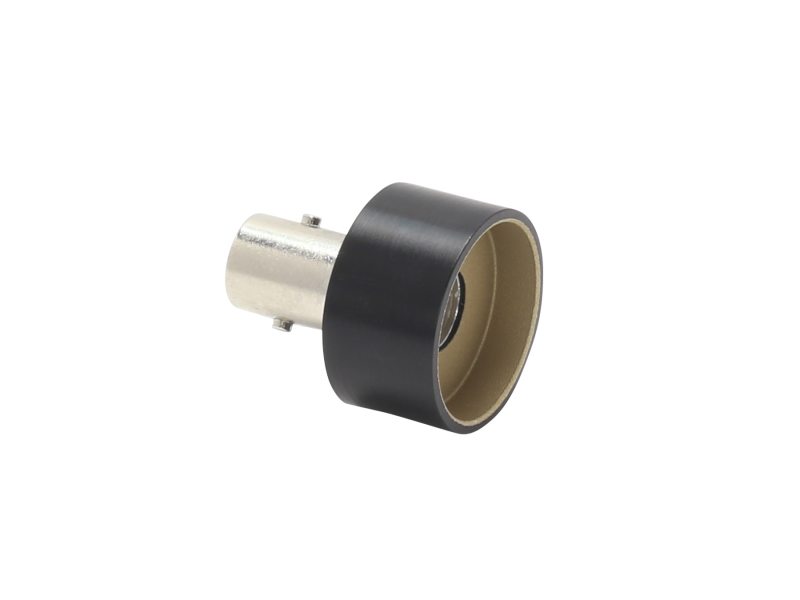

Model 9126 and 9127NF adapters provide direct attachment of connectorized fibers to fiber positioning for light coupling.
Fiber Bracket With Mechanical Strain Relief
These Model 9096 unique fiber bracket was designed by Newport to offer a convenient and intelligent way to protect and organize multiple fibers feeding into alignment systems. The bracket serves to intercept the mechanical strain on each of the 4 FC connectorized fibers it supports without effecting the optical path. These brackets mount directly to optical tables and breadboards to prevent wear and tear of connecting and disconnecting fibers with equipment. It also provides secure organization of fibers to neatly keep them out of the way.
