Temperature Controlled TO-CAN Laser Diode Mounts

Temperature controlled laser diode mounts provide convenient mounting solutions for the most demanding laser diode control in the laboratory. Direct access to the laser TO-CAN window is possible on these laser diode mounts, for both the TO-9 and TO-56 type packages.

Convenient platform for mounting low power laser diodes
Wide operating temperature range of -5°C to +80°C
High efficiency heat transfer extends laser diode lifetime
Socket and wiring accommodates 3 pin and 4 pin configurations
Compatible with free-space and pigtailed 5.6 mm, 9 mm TO-can diodes

See All Features

Description	Compatibility	Avail.	Price
710Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled	UNIVERSAL	In Stock	$1,485

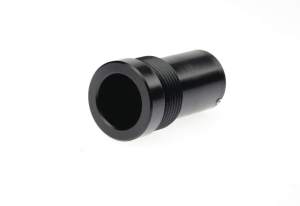

710-LA-5Lens adapter, 5 mm, For LP-05A-XYZ mounted on Model 710	UNIVERSAL	Contact Us	$90
710-LA-9Lens adapter, 9 mm, For LP-05A-XYZ mounted on Model 710	UNIVERSAL	In Stock	$100

Features

Collimating Laser Beam

Mount with optional collimation lens assembly

Collimation of the divergent output of a free-space laser diode is accomplished via the accessories available for these laser diode mounts. In addition, fiber pigtailed diode lasers are accommodated on this same platform. For collimating divergent output beams, a precision lens alignment mechanism and multiple-element collimating optics are available as accessories.

Standard Laser Diode Control Connectors

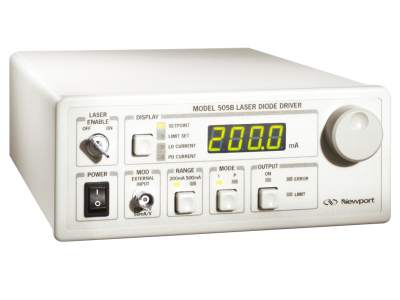

These mounts have standard connectors to work with Newport laser diode instrumentation.

700 Series TO Can Mounts

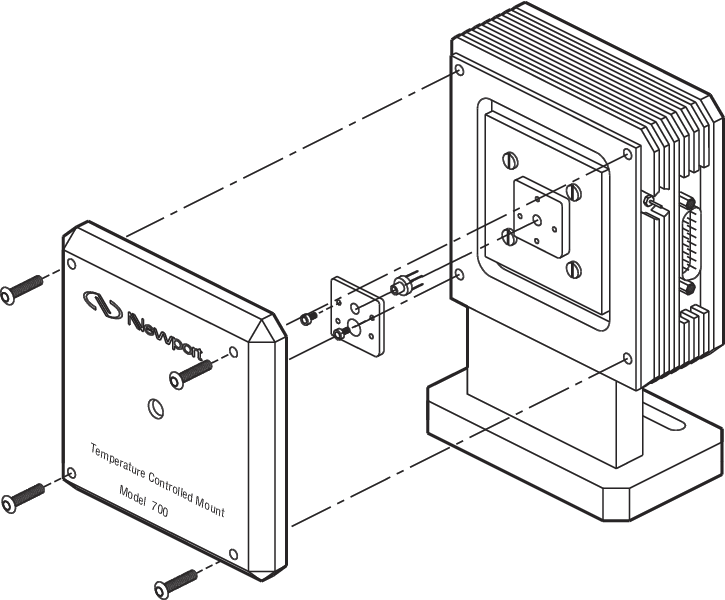

The 700 Series TO-can Temperature Controlled Laser Diode Mounts provide a versatile mounting solution for the most demanding laser diode control in the laboratory. Direct access to the laser TO-can window is available by an easily removable retaining plate, for both the TO-9 and TO-56 can type.

Optimum TO-Can Case Temperature Control

Optimum temperature control is achieved via two built-in 12.5 W Peltier thermoelectric coolers (TEC). To increase system flexibility, the mount incorporates a nitrogen purge fitting, a BNC connector for modulation (BIAS-T not included), and two temperature sensors (thermistor and AD592CN).

Optical Post Mounting

The 710 laser diode mount can be used with a post and post holder to secure to an optical table or optical breadboard. The mount supports 8-32 and M4 type threaded screws for attachment.

Accessories

Description	Compatibility	Avail.	Price
LP-05A-XYZPrecision Lens Positioner, 0.5 in., 100 TPI XY, 80 TPI Z	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$555
300-04Control Cable, Temperature Controller, 300B Series, DB15 Male to DB15 Female	UNIVERSAL	In Stock	$100
500-04Cable, Laser Diode Driver, DB9 Male to DB9 Female	UNIVERSAL	In Stock	$95
