Compare Model Drawings, CAD & Specs Isolator Height Load Capacity per Isolator Number of Isolators Availability Price
Vibration Isolator Set, SL-1200, 19.5 in., Qty 4, 4800 lb. Load, Tie-bar Flange
$3,330
5 Weeks
19.5 in. (495.3 mm) 1200 lb (544 kg) 4
5 Weeks
Vibration Isolator Set, SL-1200, 22 in., Qty 4, 4800 lb. Load, Tie-bar Flange
$3,330
22 in. (558.8 mm) 1200 lb (544 kg) 4
Vibration Isolator Set, SL-1200, 23.5 in., Qty 4, 4800 lb. Load, Tie-bar Flange
$3,330
5 Weeks
23.5 in. (596.9 mm) 1200 lb (544 kg) 4
5 Weeks
Vibration Isolator Set, SL-1200, 28 in., Qty 4, 4800 lb. Load, Tie-bar Flange
$3,397
5 Weeks
28 in. (711.2 mm) 1200 lb (544 kg) 4
5 Weeks
Vibration Isolator Set, SL-600 LabLegs, 19.5 in., 2400 lb. load, Qty 4, Tie-Bar Flange
$2,855
5 Weeks
19.5 in. (495.3 mm) 600 lb (272 kg) 4
5 Weeks
Vibration Isolator Set, SL-600 LabLegs, 22 in., 2400 lb. load, Qty 4, Tie-Bar Flange
$2,855
5 Weeks
22 in. (558.8 mm) 600 lb (272 kg) 4
5 Weeks
Vibration Isolator Set, SL-600 LabLegs, 23.5 in., 2400 lb. load, Qty 4, Tie-Bar Flange
$2,855
5 Weeks
23.5 in. (596.9 mm) 600 lb (272 kg) 4
5 Weeks
Vibration Isolator Set, SL-600 LabLegs, 28 in., 2400 lb. load, Qty 4, Tie-Bar Flange
$2,911
5 Weeks
28 in. (711.2 mm) 600 lb (272 kg) 4
5 Weeks

Specifications

  • Type
    Closed Pneumatic Isolator with Tie Bar Flange
  • Load Capacity per Isolator
    SL-600: 600 lb (272 kg)
    SL-1200: 1200 lb (544 kg)
  • Tie Bar Flange
    Yes
  • Horizontal Isolation, Resonance
    1.5 Hz
  • Horizontal Amplification at Resonance
    13 dB
  • Horizontal Isolation, 10 Hz
    98%
  • Vertical Isolation, Resonance
    SL-600: 3.5 Hz
    SL-1200: 3.2 Hz
  • Vertical Amplification at Resonance
    9 dB
  • Vertical Isolation, 10 Hz
    96%

Features

Pneumatic Isolation Solution at a Very Affordable Price

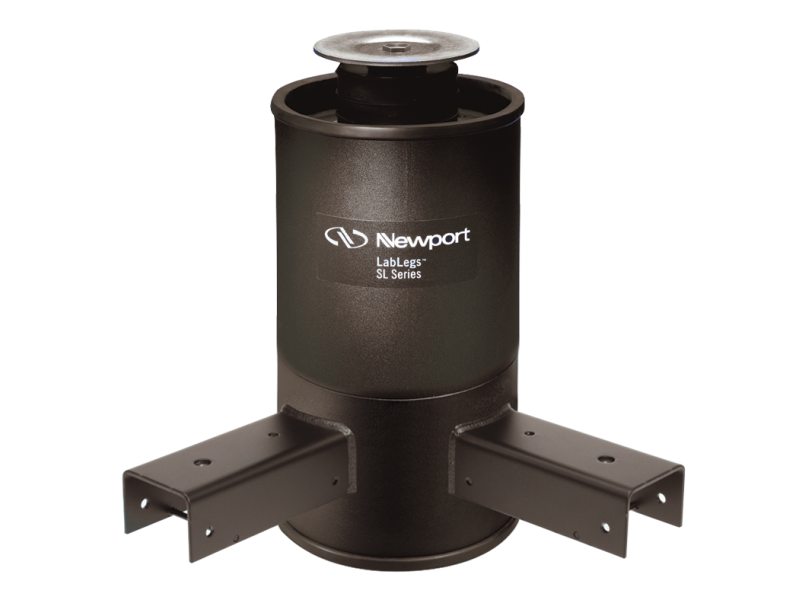

LabLegs™ SL isolators feature Newport's SLM Series Air Isolation Mounts with different load capacity options mounted on a robust cylinder frame. To be more specific, SL-600 and SL-1200 series incorporate SLM-6A and SLM-12A, respectively. The rigid wall design of the air mount provides better isolation than traditional air bladder design, delivering 96% isolation (vertical) and 98% isolation (horizontal) at 10 Hz for SL-1200 at full load. Once filled with air they are virtually maintenance free.

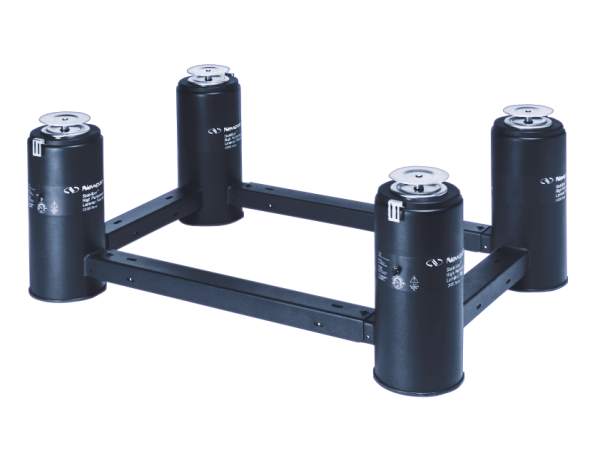

Compatible with Optical Table Tie Bars

Optical table supports with a tie bar flange are compatible with our optical table support tie-bar systems. Optical table support tie-bars increase the stability of your optical table. They are available in kits for various standard size optical tables with and without casters for moving the table system. We also offer complete optical table and support systems that include the optical table, isolators, and support frames that incorporate tie-bars between the isolators.
