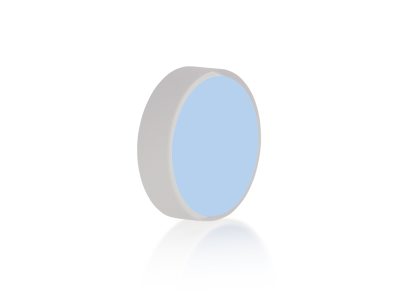

Borofloat® 33 Nd:YAG Laser Mirrors
Borofloat® 33 Nd:YAG Laser Mirrors
These Nd:YAG laser mirrors are manufactured using a Borofloat® 33 substrates and ultrahard dielectric coatings. These mirrors are able to withstand high-energy pulses up to 5 J/cm2.
- Ultra-hard dielectric coating design
- Damage threshold of up to 5 J/cm2
- Nd:YAG laser mirrors for 1064 or 532 nm
- Borofloat® 33 substrate See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 5104Nd:YAG Mirror, 1.0 in. Diameter, 1064 nm | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5105Nd:YAG Mirror, 1.0 in. Diameter, 532 nm | In Stock | ||||
 | 5124Nd:YAG Mirror, 2.0 in. Diameter, 1064 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- MaterialBorofloat® 33
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Angle of Incidence0-45°
- Back SurfaceFine Grind
Features
Borofloat® 33 Substrates
Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, refer to the optical material technical note.
