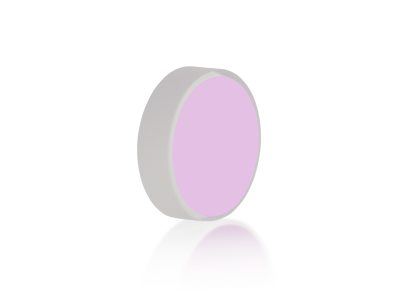

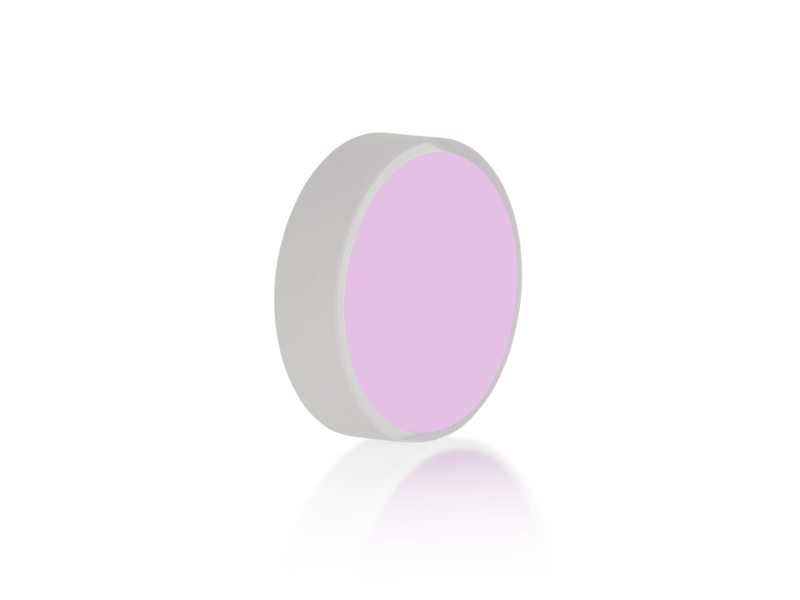

Nd:YAG Mirror, 1.0 in. Diameter, 1064 nm

The 5104 is a 25.4 mm diameter, 8 mm thick Nd:YAG Laser Mirror coated for the fundamental 1064 nm wavelength on a Borofloat 33 substrate. Its reflectivity at this wavelength is greater than 99% for all polarizations from 0° to 45° AOI. The coating is highly durable and will withstand repeated cleaning.

Specifications

Technical Specs

Wavelength Region
IR
Wavelength Range
1064 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Borofloat® 33
Reflectivity
R>99%, 1064 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Fine Grind
Thickness
8.0 mm
Damage Threshold
3 KW/cm² CW
5 J/cm² @ 10 ns, 20 Hz
