The CYM-2R can hold and position cylindrical optics as large as 2-in in height. What makes this mount unique is its ability to rotate a cylindrical optic about its center. This feature eliminates unwanted translation during rotation of the power axis.
Additional CAD file downloads are not available for this product.
adjustable-cylindrical-lens-mount - Drawings
Additional drawings are not available for this product.
Specifications
Use
Cylindrical Lens Rotation
Maximum Height
50.8 mm
Maximum Width
60.5 mm
Adjustments
θz
Adjustment Screw Thread
100 TPI
Angular Range
±5 °
Sensitivity
2 arc sec
Features
Adaptors Keep Optical Axis Centered to Rotation Axis

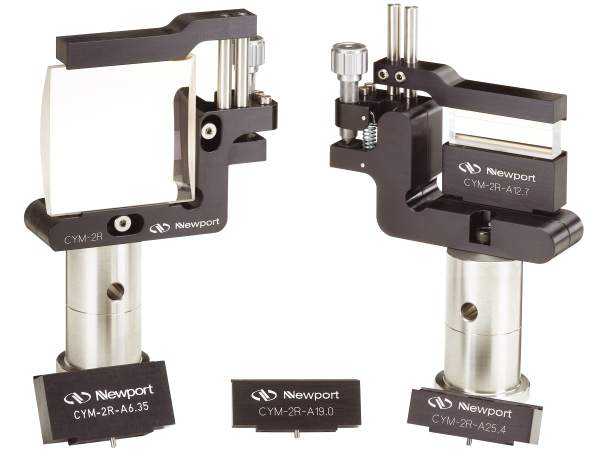

Adaptors are available to mount 1/4 in., 1/2 in., 1 in. and 19 mm high cylindrical optics. Each one of these adaptors places the center of the cylindrical lens at the axis of rotation and has a location pin for quick installation.
Provides On-center Roll Adjustment
The CYM-2R rotates a cylindrical optic about its center. This feature eliminates unwanted translation of the lens during rotation of the power axis.
Accessories
Compare
Description
Compatibility
Drawings, CAD & Specs
Avail.
Price
CYM-2R-A25.4Cylindrical Lens Adapter, 25.4 mm Lens, CYM-2R Mount
UNIVERSAL
In Stock
$53.00
CYM-2R-A6.35Cylindrical Lens Adapter, 6.35 mm Lens, CYM-2R Mount
UNIVERSAL
In Stock
$53.00
CYM-2R-A12.7Cylindrical Lens Adapter, 12.7 mm Lens, CYM-2R Mount
UNIVERSAL
In Stock
$53.00
CYM-2R-A19.0Cylindrical Lens Adapter, 19.0 mm Lens, CYM-2R Mount
