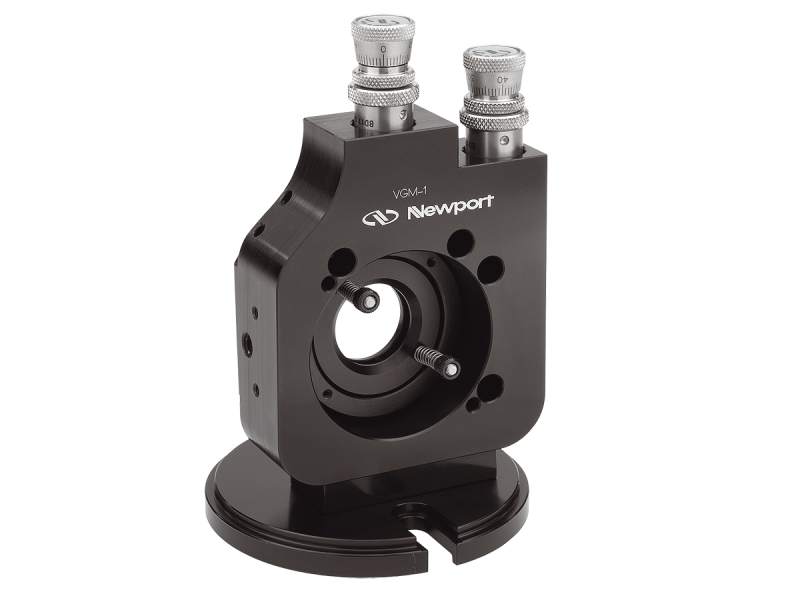

Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers

Technical Specs

  • Mechanism
    Gimbal
  • Optic Diameter
    25.4 mm
  • Adjustment Screw Thread
    51 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    9.7 arc sec
  • Angular Range
    ±2°
  • Material
    Anodized Aluminum
  • Drive Type
    Micrometer
  • Thread Type
    M3 and M6
  • Optical Axis Height
    32.5 mm
  • Clear Aperture
    21 mm
  • Special Features
    Low Distortion
