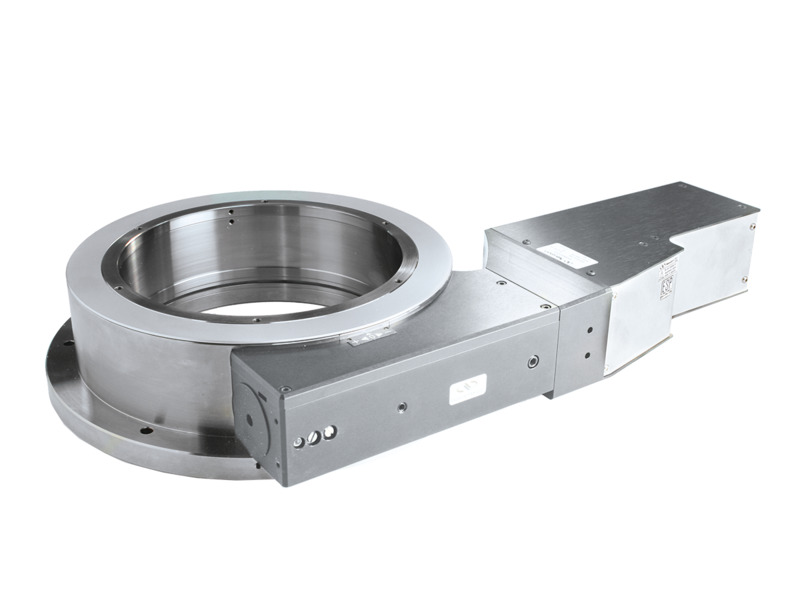

Motorized Rotation Stage, High Torque, 120 mm, Full-Step Drive, Vacuum

Technical Specs

  • Angular Range
    360°
  • Maximum Speed
    1°/s
  • Minimum Incremental Motion
    1.0 mdeg
  • Bi-directional Repeatability, Typical
    ±0.7 mdeg
  • Maximum Torque
    10 N m
  • Centered Load Capacity
    900 N
  • Thread Type
    M4
  • Uni-directional Repeatability, Typical
    ±0.35 m°
  • Uni-directional Repeatability, Guaranteed
    ±1.0 m°
  • Bi-directional Repeatability, Guaranteed
    ±2.0 m°
  • Accuracy, Typical
    ±4.0 m°
  • Accuracy, Guaranteed
    ±7.5 m°
  • Wobble, Typical
    ±5 µrad;
  • Wobble, Guaranteed
    ±10 µrad;
  • Eccentricity, Typical
    ±0.63 µn;
  • Eccentricity, Guaranteed
    ±2.0 µn;
  • Inertia
    70 kg.m ²
  • Transversal Compliance
    1.5 µrad / N m
  • Origin Repeatability
    ±0.5m°
  • Limit Switches
    Optical, at ±170, can be disabled for continuous rotation
  • Encoder Resolution
    0.001°
  • Diameter
    120 mm
  • Aperture Diameter
    78 mm
  • Connector Type
    DB25 M
  • Vacuum Compatibility
    10-6 hPa
  • Weight
    6.5 kg
  • MTBF
    20,000 h (25% load, 10% duty cycle)
  • RoHS
    Compliant
