Sorry, this product is no longer offered for sale. It was discontinued on May 14, 2021

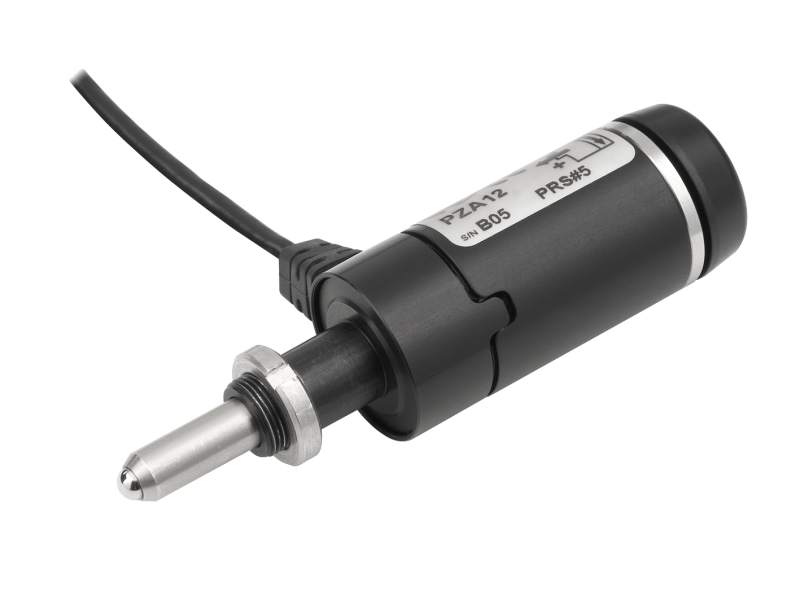

Piezo Actuator, Ultra-High Resolution, 12.5 mm Travel

The NanoPZ Ultra-High Resolution Actuator provides exceptional nanometer-scale remote control of manual-positioning stages and opto-mechanical components over large distances, in hard to reach spaces and in hazardous hands-off applications, like high-power laser experiments. The NanoPZ's non-rotating tip helps prevent contact surface wear and allows for direct load attachments. Newport's exclusive design and innovative piezo motor ensures 30 nm incremental motion capability with no loss of position when power is removed. The NanoPZ incorporates the exclusive piezo micro stepping motor and with ergonomic controls, provides consistent results, superior reliability and unmatched ease-of-use. All this, plus >0.2mm/s speed, 50 N load capacity and more quiet operation, it's easy to see why the NanoPZ outperforms the rest.Use with the PZC200 controller or for a complete actuator/comtroller kit, order the PZC200-KT.
Resources & Downloads
Application Notes
2D Product Drawings
PZA(346.7 kB, PDF)
Manuals
NanoPZ Motion System User's Manual(1.8 MB, PDF)
