90 Degree Mounting Bracket, 304.8 mm, M6, SA2 Series Breadboards

90 Degree Mounting Bracket, 304.8 mm, M6, SA2 Series Breadboards

Model: M-SA2-BRKT-12

$246

In Stock

Compare

Add to List

Product Series Overview

90 Degree Optical Breadboard Mounting Brackets

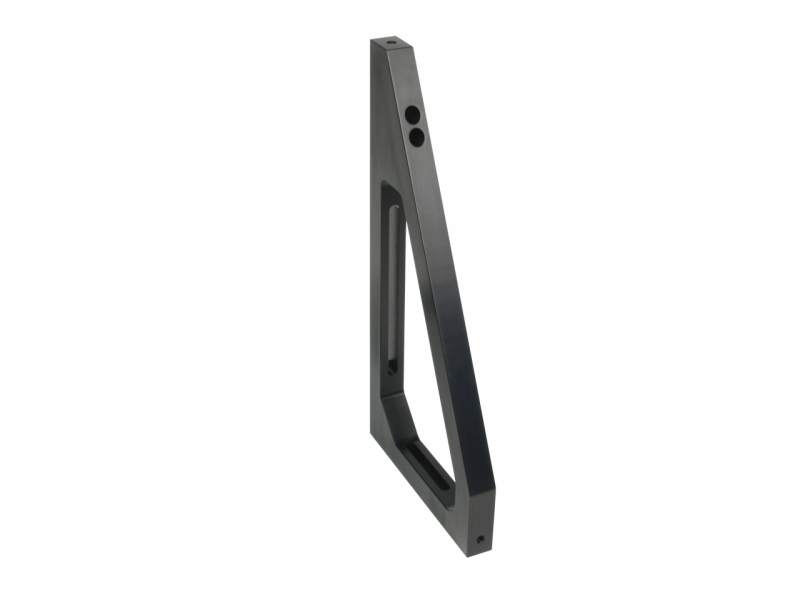

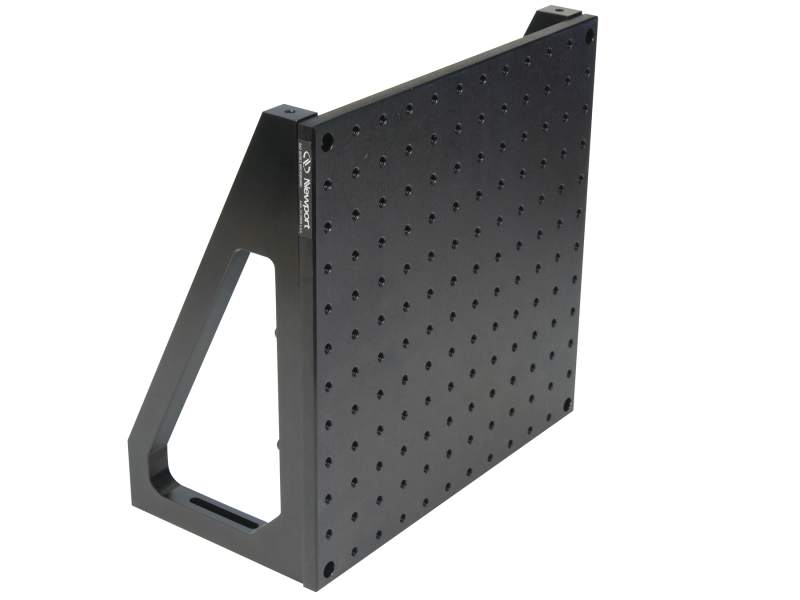

The M-SA2-BRKT-12 90 Degree Mounting Bracket is ideal for mounting SA2 aluminum breadboard plates vertically. This 304.8 mm length, flat black, anodized aluminum bracket has tapped M6 holes. One bracket included.

Specifications

Technical Specs

Width

304.8 mm
Mounting Holes

M6

Width

304.8 mm
Mounting Holes

M6

Resources & Downloads

Other

M-SA2-BRKT-12 RoHS Certificate (275.2 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SA2-BRKT-12.pdf (146.4 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-SA2-BRKT-18 90 Degree Mounting Bracket, 457.2 mm, M6, SA2 Series Breadboards	METRIC		In Stock	$351
		M-SA2-BRKT-6 90 Degree Mounting Bracket, 152.4 mm, M6, SA2 Series Breadboards	METRIC		In Stock	$143

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-SA2-12 Optical Breadboard Plate, Solid Aluminum, 300 x 600 mm, 25 mm M6 Grid	METRIC		In Stock	$355
		M-SA2-11 Optical Breadboard Plate, Solid Aluminum, 300 x 300 mm, 25 mm M6 Grid	METRIC		In Stock	$202
		M-SA2-06x24 Optical Breadboard Plate, Solid Aluminum, 150 x 600 mm, 25 mm M6 Grid	METRIC		4 Weeks	$211
