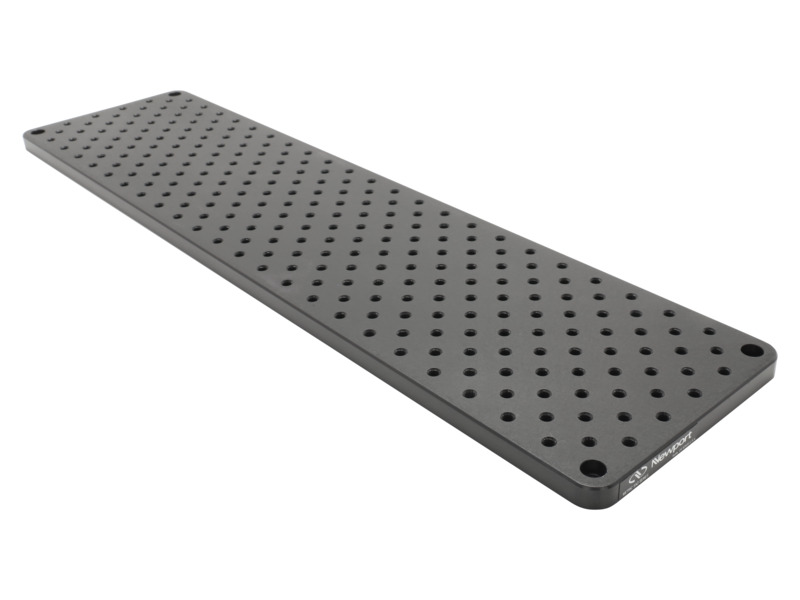

Optical Breadboard Plate, Solid Aluminum, 150 x 600 mm, M6, Double Density
The M-SA2-06X24-D Solid Aluminum Optical Breadboard is a 150 x 600 mm by 12.7 mm thick solid aluminum plate perfect for all kinds of non-critical applications where higher performance and higher priced breadboards are simply not necessary. It features double density M6 hole pattern to accommodate the ever growing need to mount components more closely together to save space for compact applications.
Specifications
- Width150 mm
- Length600 mm
- Thickness12.7 mm
- Working SurfaceLow reflective anodized aluminum
- Surface Flatness±0.5 mm
- MicrolocksNo
- Mounting HolesM6
- Number of Counterbored HolesFour M6 Located at corners - Inset 12.5 mm from edge
- Mounting Hole TypeCut (not rolled) threads with countersink
- Mounting Hole Pattern25 mm grid, double density
- Mounting Hole Borders12.5 mm borders
- Core DesignSolid Aluminum
- Weight3.1 kg
Resources & Downloads
Other
M-SA2-06X24-D RoHS Certificate(275.2 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-SA2-FT-50Vibration Isolation Mounting Foot, Sorbothane, 50 Durometer, M6 Thread | In Stock | ||||
| M-SA2-FT-70Vibration Isolation Mounting Foot, Sorbothane, 70 Durometer, M6 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SA2-HNDLHandles, Optical Breadboard, 2 Piece Set, SA2 Series | In Stock |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

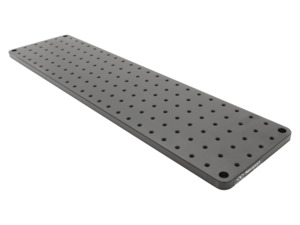

 | M-SA2-06x24Optical Breadboard Plate, Solid Aluminum, 150 x 600 mm, 25 mm M6 Grid | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
