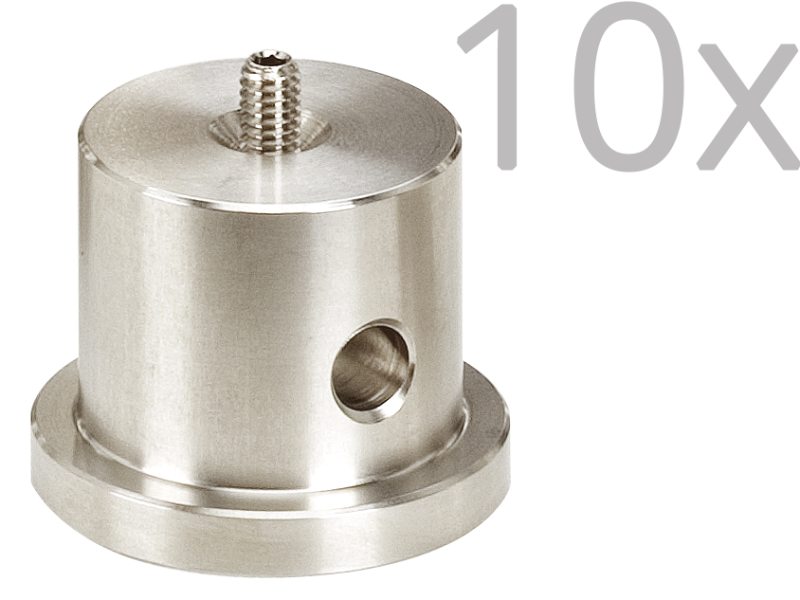

Optical Pedestal 10 Pack, 25.4 mm Height, 25.4 mm Diameter, M4 Thread

1.0 in. Optical Pedestals, Graduated Diameter

This is a 10-pack of the Optical Pedestal. The M-PS-1 Precision Ground Stainless Steel Optical Pedestal maintains long-term optical system alignment. This 25.4 mm diameter post has a 25.4 mm height. Cross-drilled holes allow 5 mm hex wrenches to aid in tightening and loosening assembled posts. An M4 threaded hole on each end allows optical pedestals and pedestal extenders to be attached together end-to-end using a setscrew. In-between heights can be achieved by combining an optical pedestal with a 12.7 mm high post and/or spacers, available in 3.18 and 6.35 mm heights. For direct mounting to a threaded hole on an optical table, use a M6 to M4 thread adaptor. The Pedestal Post System enables ultra-stable mounting of optical mounts at low beam heights. Slotted clamping forks secure pedestals anywhere on an optical table.

Specifications

Technical Specs

Type
Optical Pedestal Pack
Height
25.4 mm
Thread Type
M4
Material
Stainless Steel

Pack Quantity
10
Diameter
25.4 mm

Type
Optical Pedestal Pack
Height
25.4 mm
Thread Type
M4
Material
Stainless Steel

Pack Quantity
10
Diameter
25.4 mm

Resources & Downloads

2D Product Drawings

PS Posts-S(175.7 kB, PDF)

Other

M-PS-1-PK RoHS Certificate(277.1 kB, PDF)
M-PS-1-PK_RoHS2021.pdf(678.7 kB, PDF)
