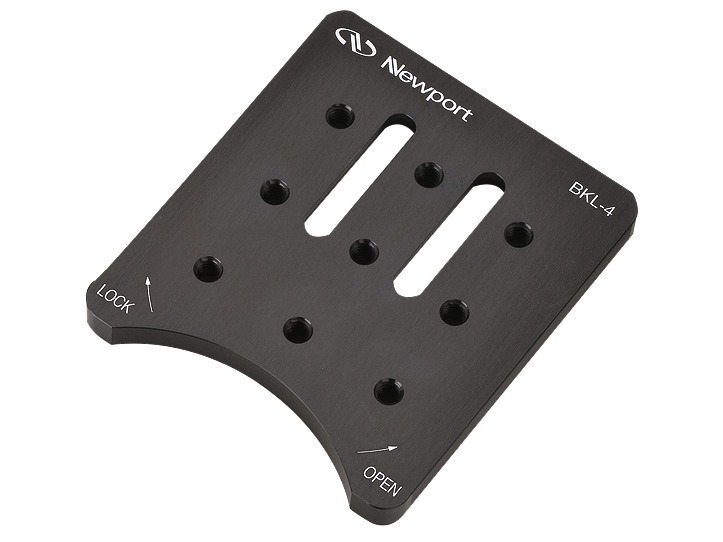

Top Plate, For M-BKL-4, Kinematic Base, Metric

Top Plate, For M-BKL-4, Kinematic Base, Metric

Model: M-BKL-4-T

$114

4 Weeks

Compare

Add to List

Product Series Overview

Kinematic Bases

The M-BKL-4-T Top Plate is a spare for the M-BKL-4 Kinematic Base.

Specifications

Technical Specs

Type

Kinematic Base Top Plate
Base size

88.9 x 101.6 mm
Thread Type

M6

Material

Aluminum

Type

Kinematic Base Top Plate
Base size

88.9 x 101.6 mm
Thread Type

M6

Material

Aluminum

Resources & Downloads

Other

M-BKL-4-T RoHS Certificate (277.3 kB, PDF)
M-BKL-4-T_RoHS2021.pdf (679.5 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BKL-4-S (91.8 kB, PDF)
