Fiber-Optic Phase Modulator, 10 GHz, 1064 nm.

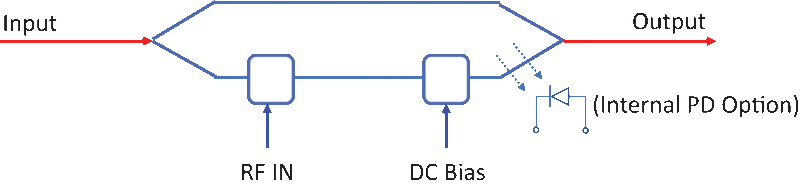

The M-APE-I-1064 is a high-performance, 10 GHz LiNbO3 fiber-optic phase modulator. It can provide phase modulation in a broad operation bandwidth with a low driving voltage. Its low insertion loss provides for maximum transmission power. The M-APE-I-1064 is fabricated with Annealed Proton Exchange (APE) optical waveguides and uses polarization-maintaining input and output fibers, making it easy to integrate with other optical components.
Specifications
- TypePhase Modulator
- Fiber TypePM 980
- MaterialLiNbO3
- Fiber ConnectorFC/APC
- Operating Wavelength1030 to 1070 nm
- Operating Frequency10 GHz
- Maximum Insertion Loss3.5 dB
- Typical Insertion Loss3.0 dB
- Return Loss≥ 30 dB
- Bandwidth7 GHz min, 10 GHz typical @ -3 dB (S21)
- Maximum Optical Power60 mW
- Operating Humidity0% to 90% Relative Humidity
- Dimensions3.783”x 0.981” x 0.640”
- Extinction Ratio≥ 20 dB
- Power RequirementsVπ 6.8 V typical @ 1 GHz, 10 V typical @ 10 GHz
- Storage Temperature-60°C to +90°C
Resources & Downloads
DS-062301 M-APE-1064 Datasheet.pdf(1.7 MB, PDF)
