Laser Diode Mount, 3 & 4-pin TO-Can, Temp Controlled [Discontinued]

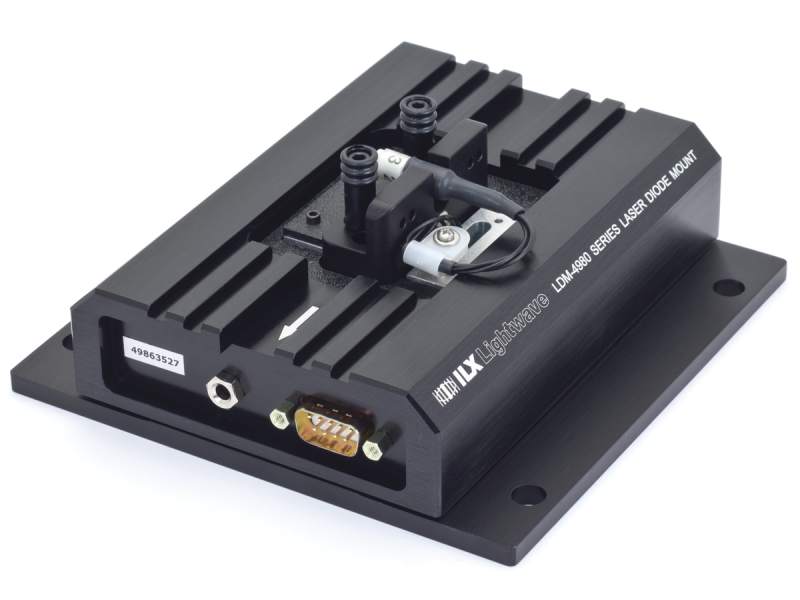

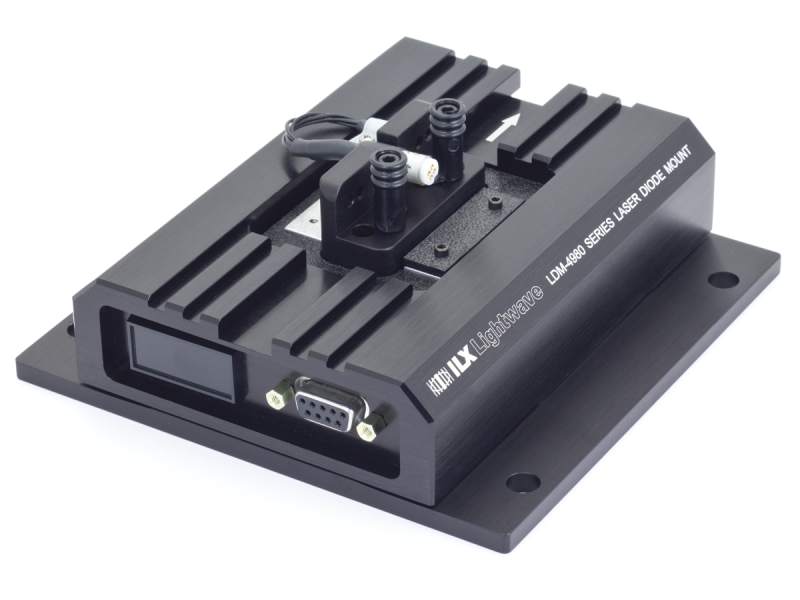

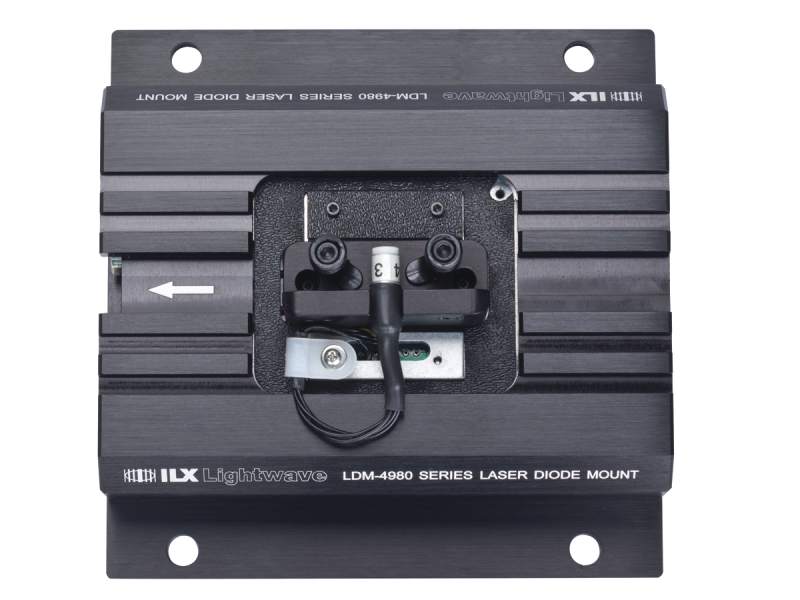

The LDM-4986 is designed for typical telecommunication 3- and 4-pin flanged TO-Can laser diode packages and includes case temperature control with a temperature range of -5°C to 50°C. Flanges can be clamped to the hotplate either vertically or horizontally. The LDM4986 features the ILX Lightwave® standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.
Specifications
- Package Type3-pin & 4-pin TO-Can
- Laser Current2 A
- TE CoolerYes
- TE Current Range-6.0 to +6.0 A
- TE Voltage Range-4.2 to +4.2 V
- Temperature Sensor10 kΩ NTC Thermistor
- Laser Driver Connector TypeFemale 9-pin DSUB
- TEC Controller Connector TypeMale 9-pin DSUB
- Dimensions39.4 x 140 x 140 mm
