LDM-4983 Laser Diode Mount

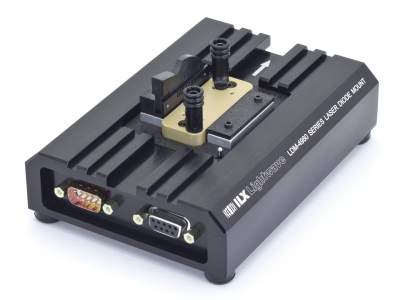

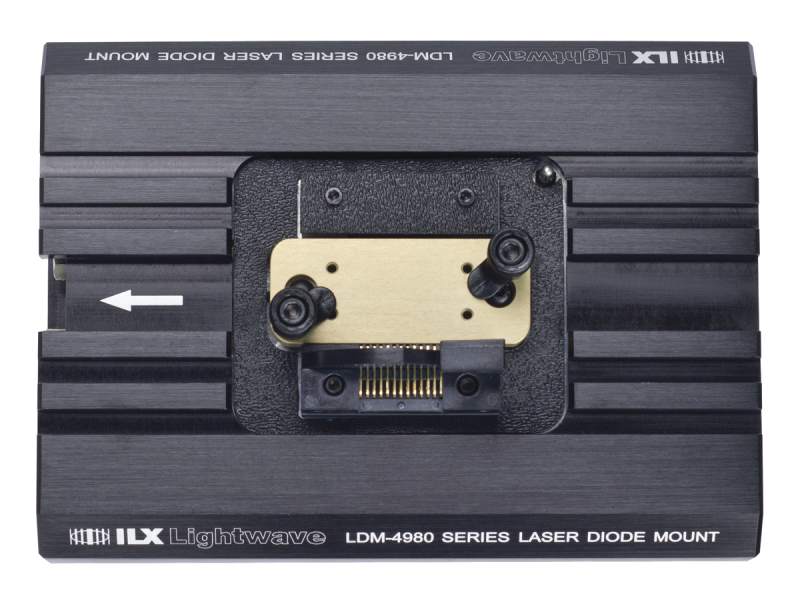

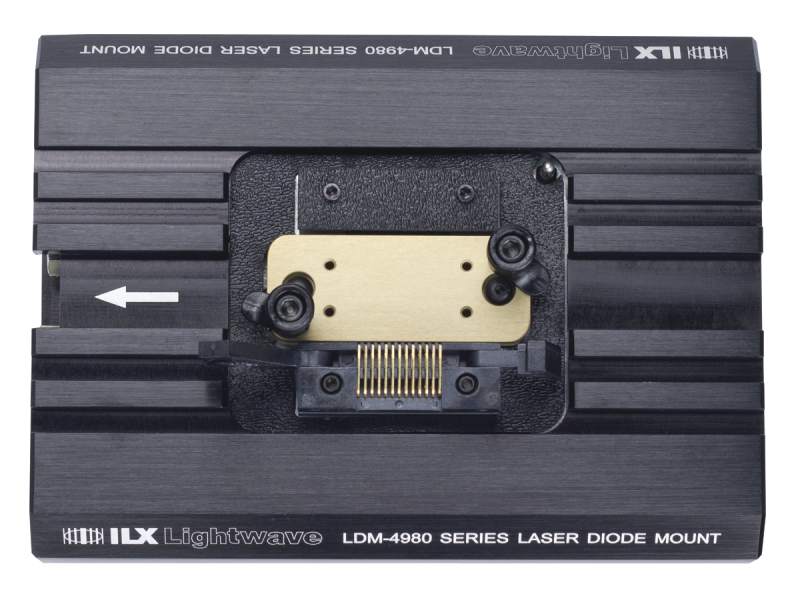

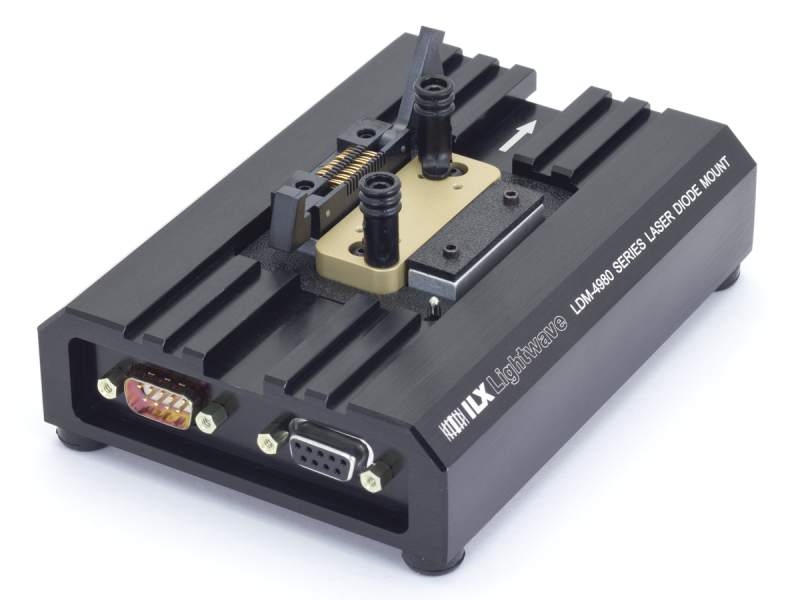

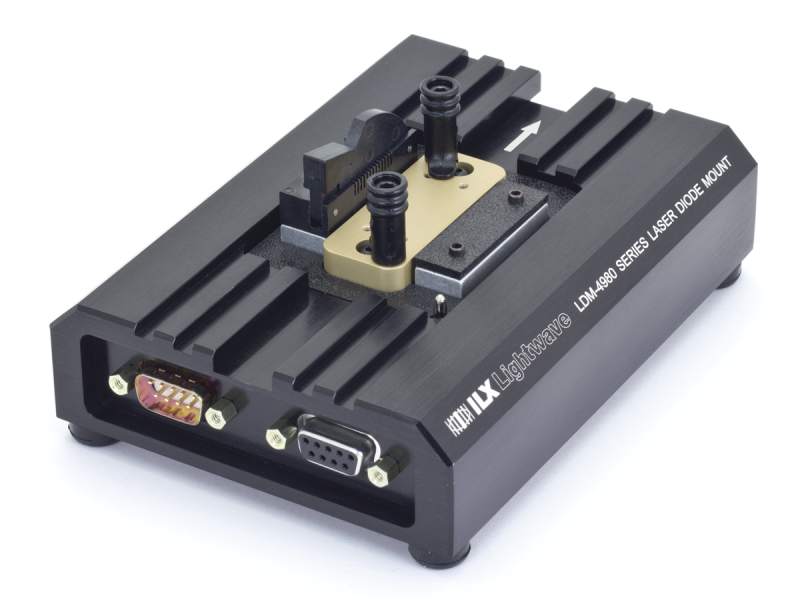

The LDM-4983 is designed for typical telecommunication 13-pin and 7-pin butterfly laser diode packages. Zero insertion force (ZIF) sockets and spring-loaded clamps facilitate ease of mounting. The LDM4983 features the ILX Lightwave^® standard 9-pin D-sub input connectors with configurable pin designations to accommodate virtually any laser diode pin configuration.

Specifications

Technical Specs

Package Type

13-pin or 7-pin Butterfly
Laser Current

2 A
TE Cooler

No
Temperature Sensor

None

Laser Driver Connector Type

Female 9-pin DSUB
TEC Controller Connector Type

Male 9-pin DSUB
Dimensions

31.8 x 102 x 140 mm

Package Type

13-pin or 7-pin Butterfly
Laser Current

2 A
TE Cooler

No
Temperature Sensor

None

Laser Driver Connector Type

Female 9-pin DSUB
TEC Controller Connector Type

Male 9-pin DSUB
Dimensions

31.8 x 102 x 140 mm
