Plano-Convex Lens, N-BK7, 12.7 mm Diameter, 62.9 mm EFL, 400-700 nm
Plano-Convex Lens, N-BK7, 12.7 mm Diameter, 62.9 mm EFL, 400-700 nm
Model: KPX052-C
Product Series Overview

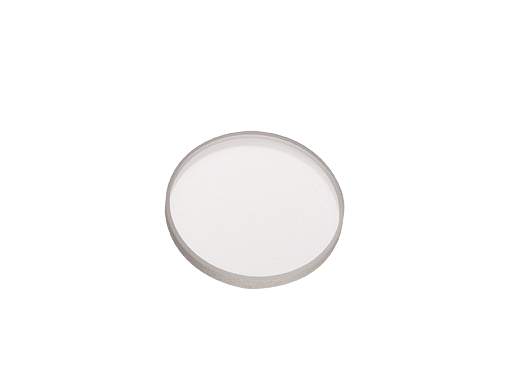

MgF2 Visible N-BK7 Plano-Convex LensesThe KPX052-C N-BK7 Precision Plano-Convex Lens is a 400 to 700 nm anti-reflection coated, 1/2 inch (12.7 mm) diameter, N-BK7 plano-convex lens with an effective focal length of 62.9 mm. It has = λ/4 surface irregularity, 40-20 scratch-dig, and is designed to meet the demanding requirements of laser electro-optic applications. It is manufactured from fine annealed optical glass and polished to tight tolerances using master test plates ensures minimum wavefront distortion. Tight surface quality tolerances minimize scatter and unwanted diffraction effects. N-BK7 is an excellent material for most visible and near infrared applications. It is the most common optical glass, and it provides great performance at a good value.
Resources & Downloads
Software
KPX052_ZEMAX(967 B, ZIP) KPX052-C Zemax File(5.3 kB, ZMX)
2D Product Drawings
PLANOCO1 VEX-S(89.6 kB, PDF)
Other
KPX052-C RoHS Certificate(708.1 kB, PDF) MgF2 Raw Data.xlsx(63.2 kB, XLSX)
