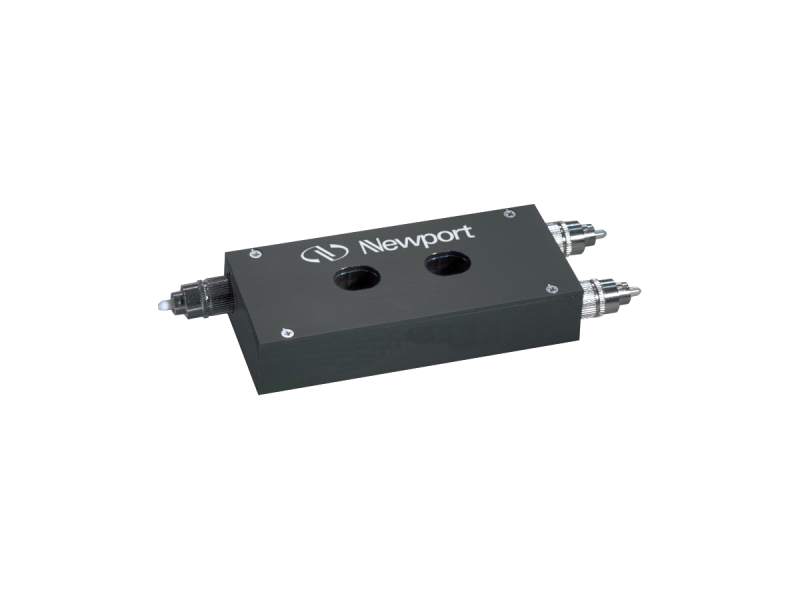

Polarization Beam Combiner, Splitter, 1550 nm, PM Input, FC/PC.

The F-PBC-15-PM-FP Polarization Beam Combiner/Splitters can be used to combine light from two PM input fibers into a single output fiber, or to separate the orthogonal polarization components of an input signal between two output fibers. These rugged bulkhead devices use FC/PC connectors and have a wide operation bandwidth and high power handling capability. They feature best in class performance in insertion loss, back reflection, and extinction ratio - all at an attractive price.

While supplies last!

Specifications

Technical Specs

Type
Polarization Beam Combiner
Wavelength Range
1550 nm
Center Wavelength
1550.0
Fiber Type
Polarization Maintaining
Fiber Connector
FC/PC
Extinction Ratio
22 dB
Typical Insertion Loss
0.4 dB
Maximum Insertion Loss
0.6 dB

Return Loss
50 dB
Maximum Optical Power
500.0 mW
Center Wavelength Tolerance
40 nm
Operating Temperature
-5 to 70°C
Dimensions
88.9 x 38.1 x 15.9 mm

Type
Polarization Beam Combiner
Wavelength Range
1550 nm
Center Wavelength
1550.0
Fiber Type
Polarization Maintaining
Fiber Connector
FC/PC
Extinction Ratio
22 dB
Typical Insertion Loss
0.4 dB
Maximum Insertion Loss
0.6 dB

Return Loss
50 dB
Maximum Optical Power
500.0 mW
Center Wavelength Tolerance
40 nm
Operating Temperature
-5 to 70°C
Dimensions
88.9 x 38.1 x 15.9 mm

Resources & Downloads

Other

F-PBC-15-PM-FP RoHS Certificate(262.9 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
F-CCUniversal Cable Clamp, Two V-grooves	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$175
F-MA-FC-FCFiber Optic Mating Adapter, FC Female to FC Female	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$11
F-MA-SC-FCFiber Optic Mating Adapter, SC Female to FC Female.	UNIVERSAL	In Stock	$36
FM-1Fiber Mode Scrambler, Knob Control, Graduated Scale	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,140

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		F-PBC-15-SM-FAPolarization Beam Combiner, Splitter, 1550 nm, SMF-28 Input, FC/APC.	UNIVERSAL		In Stock

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

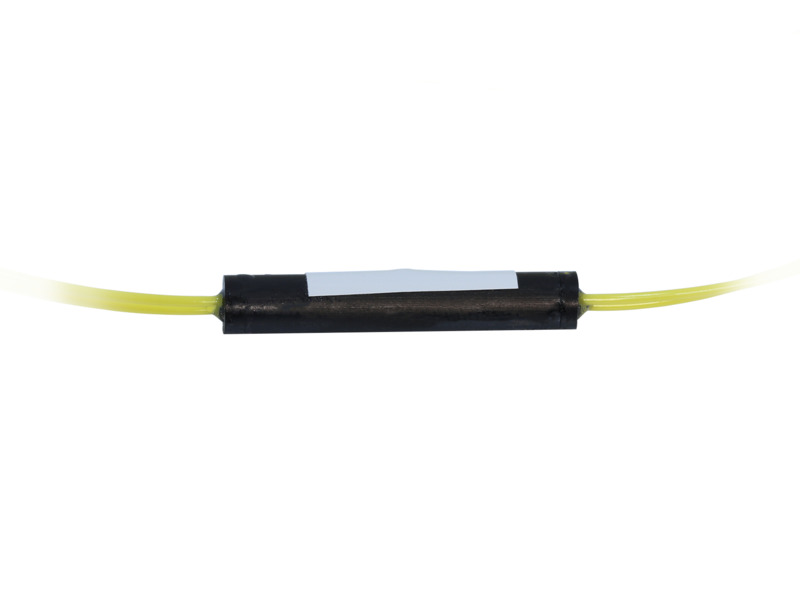

		F-PMC-1550-50Polarization Maintaining Coupler, 50/50, 1550 nm, FC/APC Connectors	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,300
