Variable Ratio Coupler, 1060nm, Non-PM, FC/APC Connectors

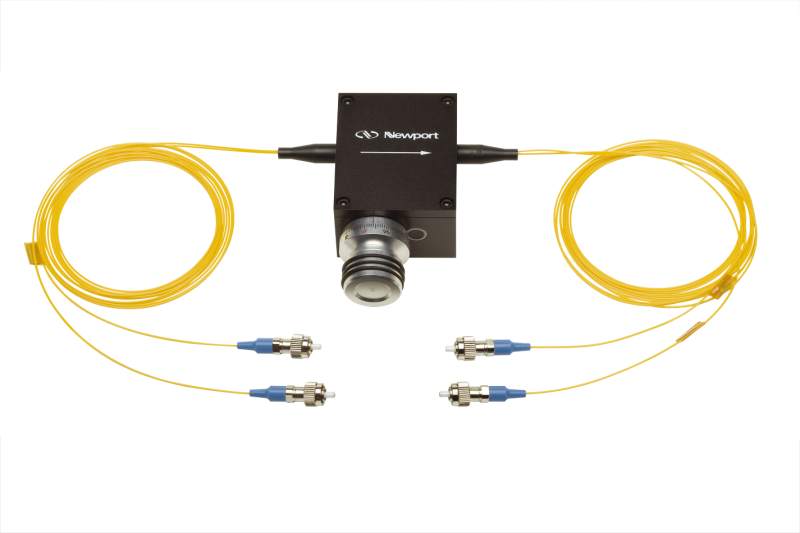

The F-CPL-1060-N-FA Variable Ratio Coupler is an all fiber, polished directional coupler with variable coupling ratio. This device can be used to divide or combine 1060 nm optical signals in fiber optics research. With its low loss and precision mechanism, the F-CPL series gives you smooth and easy control of coupling ratio. This non-PM fiber version has FC/APC connectorized fiber pigtails.

Low Loss and very precise coupling ratio adjustment — from 0–100%

With its low loss and precision mechanism, the F-CPL series gives you smooth and easy control of coupling ratio. Smooth operation relies on proper and periodic application of the index matching oil, to optimize the mode coupling. Refer to the attached instruction document.

FC/PC and FC/APC connectors standard

All standard models come with FC/PC or FC/APC fiber connectors for easy integration into any setup.

PM and non-PM types available

Polarization maintaining (PM) and non-PM fiber versions are available to give the user extra flexibility for many different applications.

Specifications

Technical Specs

Type
Variable Ratio Coupler
Fiber Type
Singlemode (HI1060)
Coupling Ratio
Variable
Fiber Connector
FC/APC
Operating Wavelength
980 - 1180 nm
Maximum Insertion Loss
0.1 dB

Typical Insertion Loss
0.1 dB
Maximum Optical Power
30 mw
Dimensions
25 x 38 x 63 mm

Type
Variable Ratio Coupler
Fiber Type
Singlemode (HI1060)
Coupling Ratio
Variable
Fiber Connector
FC/APC
Operating Wavelength
980 - 1180 nm
Maximum Insertion Loss
0.1 dB

Typical Insertion Loss
0.1 dB
Maximum Optical Power
30 mw
Dimensions
25 x 38 x 63 mm

Resources & Downloads

Manuals

F-CPL Variable Coupler Manual(56.3 kB, PDF)

Other

Index Matching Oil Supplement(100.2 kB, PDF)
