Laser Diode Driver Module, 500mA, 6.5V [Discontinued]

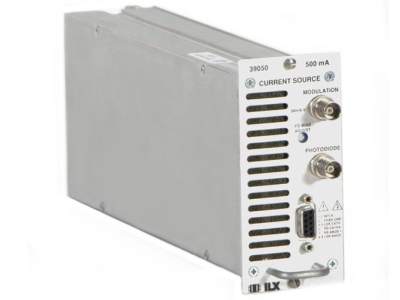

The CSM-39050 Laser Diode Current Source Module provides up to 500mA of high stability low noise current output with integrated laser diode protection circuits. The CSM39050 Laser Diode Current Source Module is compatible with the LDC-3900 Laser Diode Controller Mainframe. Standard features include constant current and constant power operation modes as well as an analog modulation input.
Specifications
- TypeLDC-3900 Driver Card
- Laser Current0.5 A
- Laser Compliance Voltage6.5 V
- Temperature Coefficient60 ppm/ °C
- Laser Current Resolution0.01 mA
- Laser Current Accuracy±0.1% of FS
- Current Output 24 h Stability40 ppm FS
- Current Output 1 h Stability20 ppm FS
- External Modulation High Bandwidth0-200 kHz
- External Modulation Low Bandwidth0-5 kHz
- Laser Output Noise/Ripple Low Bandwidth3 µA
- Laser Output Noise/Ripple High Bandwidth<5 µA
- Photodiode Current Accuracy±0.05% of FS
- Photodiode Current Range0-5000 µA
- Photodiode Current Resolution1 µA
- Photodiode Reverse Bias0-5 V
