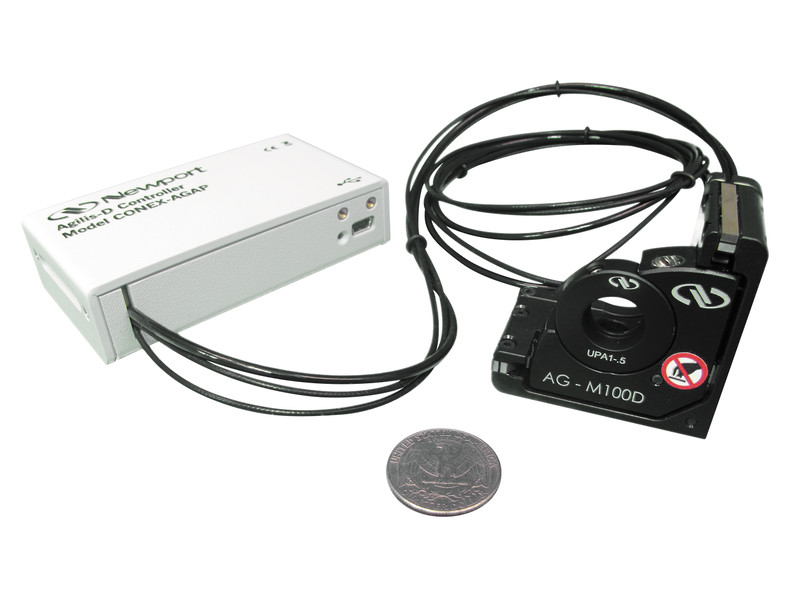

CONEX-AG-M100D Piezo Motor Mirror Mount

The CONEX-AG-M100D is a piezo motor driven mirror mount with a built-in 2 axis, absolute angle position sensor. The absolute position sensor not only provides highly repeatable positioning, but also enables the recovery of a previously-saved position. Utilizing the proven Agilis™ piezo-motor, direct-drive technology, the CONEX-AG-M100D will hold its position even when the power is turned off. The absolute position sensor enables 0.001° closed-loop MIM and 0.01° bi-directional repeatability. In open loop, it has a 2 μrad MIM over a large motion range of ± 0.75°. In addition, RS232 and RS485 communication is available at the board level.

High Angular Stability

GUI for 2-axis positioning

At the desired position, the angular stability of the AG-M100D absolute position mirror mount is the same as an ULTIMA mirror mount. Its thermal stability is in the range of 5 µrad/°C.

Closed Loop Absolute Position Adjustment

This mirror mount features an innovative miniature absolute position sensor. Within a footprint similar to the 1-in. mirror mount of the Agilis family, it offers an angular positioning capability of 0.001°, even after a system reset – this position recovery capability is a key feature of the compact CONEX-AGAP controller. Furthermore, the combination of the closed-loop algorithm with the absolute position sensor provides 0.01° bi-directional repeatability.

Fine Adjustment Performance

The CONEX Piezo mount provides ±0.75° travel on both axes with an angular open-loop adjustment sensitivity better than 2 µrad. With closed-loop positionng, minimum incrememntal motion is 0.001°.

Specifications

Technical Specs

Type

Center Mount and Controller
Optic Diameter

25.4 mm
Angular Range

±0.75°
Cable Length

1 m
Operating Temperature

10 to 35°C

Material

Aluminum
Weight

85 g
Accuracy

<0.05°
Maximum Speed

> 0.4 °/sec

Type

Center Mount and Controller
Optic Diameter

25.4 mm
Angular Range

±0.75°
Cable Length

1 m
Operating Temperature

10 to 35°C

Material

Aluminum
Weight

85 g
Accuracy

<0.05°
Maximum Speed

> 0.4 °/sec

Resources & Downloads

Literature

CONEX-AG-M100D Data Sheet (1.5 MB, PDF)
Agilis Series Piezo Motor Driven Positioners (752.4 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

AG-M100D-S (190 kB, PDF)

Manuals

Software

CONEX-AGAP-2.0.0 (16.3 MB, ZIP)

Technical Notes

MKS GUI’s and Microsoft.NET Framework 3.5 SP1 (1.4 MB, PDF)
Driving Multiple Piezo Motors on a Single Workstation (2.7 MB, PDF)
