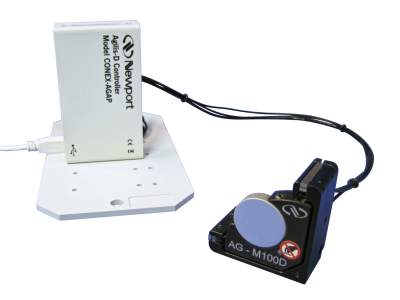

The CONEX-AG-M100D is a piezo motor actuated absolute positioning mirror mount with a dedicated closed-loop controller/driver. For out-of-the box control, the CONEX-AGAP controller is preconfigured and delivered with an Agilis™ AG-M100D 1-in. (25-mm) mirror mount with a built-in, 2-axis, absolute, angular position sensor.
At the desired position, the angular stability of the AG-M100D absolute position mirror mount is the same as an ULTIMA mirror mount. Its thermal stability is in the range of 5 µrad/°C.

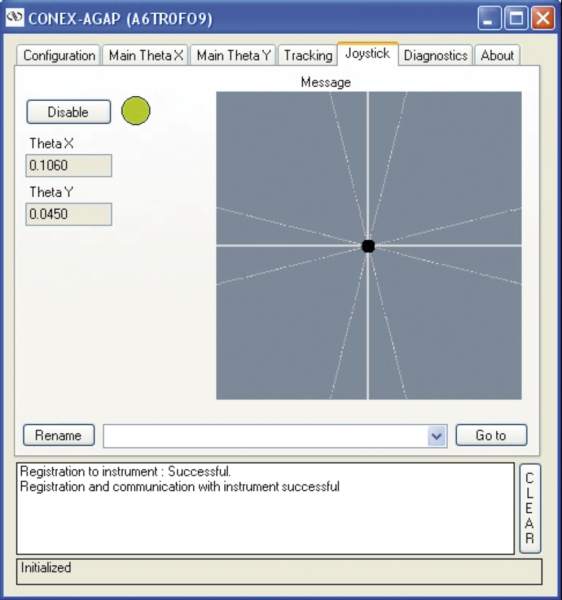

GUI for 2-axis positioning
Closed Loop Absolute Position Adjustment
This mirror mount features an innovative miniature absolute position sensor. Within a footprint similar to the 1-in. mirror mount of the Agilis family, it offers an angular positioning capability of 0.001°, even after a system reset – this position recovery capability is a key feature of the compact CONEX-AGAP controller. Furthermore, the combination of the closed-loop algorithm with the absolute position sensor provides 0.01° bi-directional repeatability.
Fine Adjustment Performance
The CONEX Piezo mount provides ±0.75° travel on both axes with an angular open-loop adjustment sensitivity better than 2 µrad. With closed-loop positionng, minimum incrememntal motion is 0.001°.
